Amazing Microelectronic AZRS6412
The AZRS6412 features a hot-swap glitch-free design which guarantees outputs of the transmitter and the receiver in a high impedance state during the power up period. It is designed 1/8 unit load with minimum 96kΩ of input impedance, which can connect 256 devices on a bus at least. The high-reliable AZRS6412 with built-in system level ESD protection can against high-energy noise transients without requiring any external components.| Part No. | AZRS6412 |
|---|---|
| Datasheet | AZRS6412 Download |
| Manufacturer |  Amazing Microelectronic |
| Description | Isolated RS485 Transceiver with embedded Transient Voltage Suppressor |
| Buy | Stock & Price |

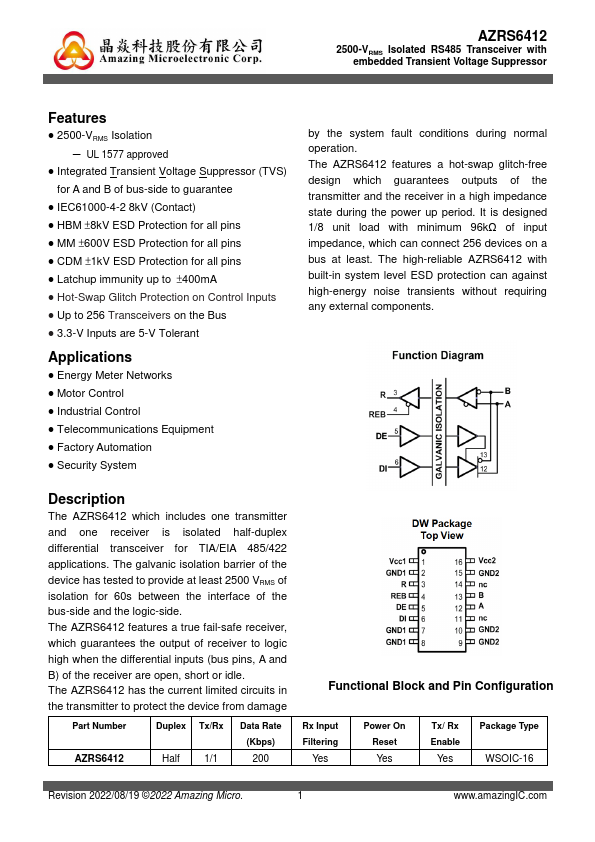

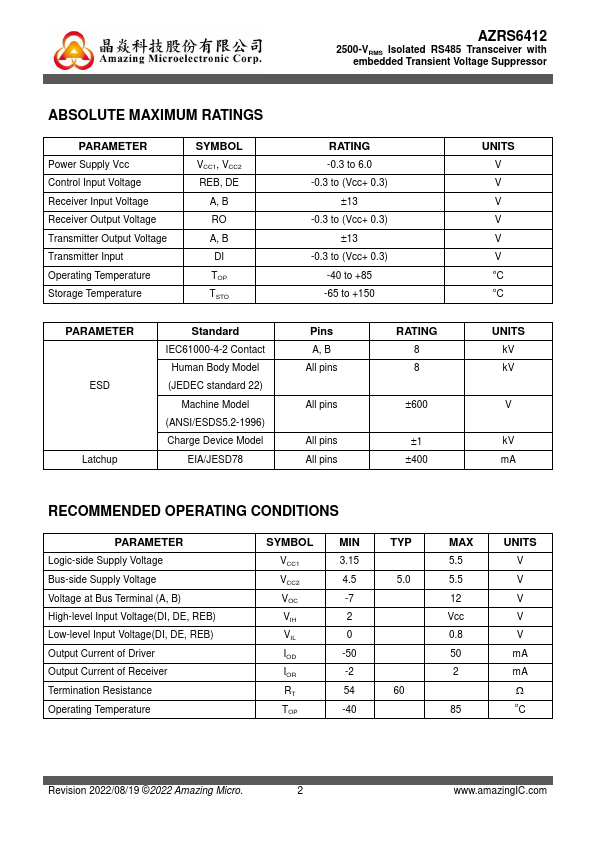

FEATURES
● 2500-VRMS Isolation ― UL 1577 approved● Integrated Transient Voltage Suppressor (TVS) for A and B of bus-side to guarantee
● IEC61000-4-2 8kV (Contact)
● HBM ±8kV ESD Protection for all pins
● MM ±600V ESD Protection for all pins
● CDM ±1kV ESD Protection for all pins
● Latchup immunity up to ±400mA
● Hot-Swap Glitch Protection on Control Inputs
● Up to 256 Transceivers on the Bus
● 3.3-V Inputs are 5-V Tolerant
APPLICATIONS
● Energy Meter Networks● Motor Control
● Industrial Control
● Telecommunications Equipment
● Factory Automation
● Security System by the system fault conditions during normal operation.

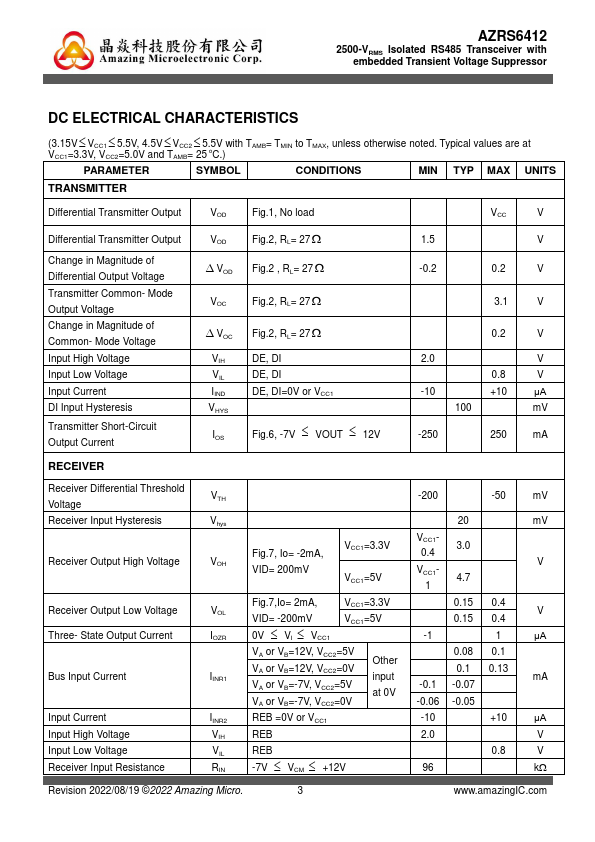

DESCRIPTION
The AZRS6412 which includes one transmitter and one receiver is isolated half-duplex differential transceiver for TIA/EIA 485/422 applications. The galvanic isolation barrier of the device has tested to provide at least 2500 VRMS of isolation for 60s between the interface of the bus-side and the logic-side. The AZRS6412 features a true fail-safe receiver, which guarantees the output of receiver to logic high when the differential inputs (bus pins, A and B) of the receiver are open, short or idle.
