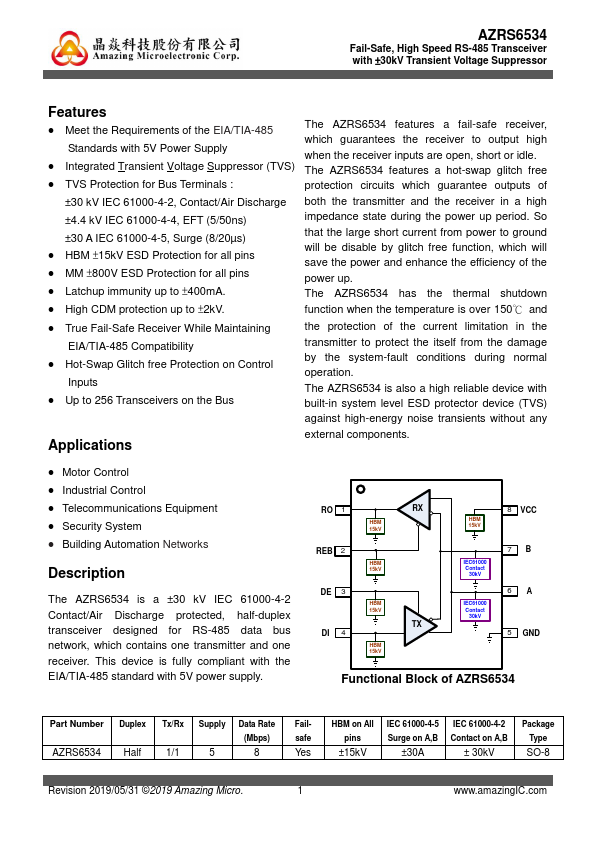

AZRS6534
Features
- Meet the Requirements of the EIA/TIA-485 Standards with 5V Power Supply
- Integrated Transient Voltage Suppressor (TVS)
- TVS Protection for Bus Terminals :
The AZRS6534 features a fail-safe receiver, which guarantees the receiver to output high when the receiver inputs are open, short or idle. The AZRS6534 features a hot-swap glitch free protection circuits which guarantee outputs of
±30 k V IEC 61000-4-2, Contact/Air Discharge ±4.4 k V IEC 61000-4-4, EFT (5/50ns) ±30 A IEC 61000-4-5, Surge (8/20µs)
- HBM ±15k V ESD Protection for all pins
- MM ±800V ESD Protection for all pins
- Latchup immunity up to ±400m A. both the transmitter and the receiver in a high impedance state during the power up period. So that the large short current from power to ground will be disable by glitch free function, which will save the power and enhance the efficiency of the power up. The AZRS6534 has the thermal shutdown
- High CDM protection up to ±2k V. function when the temperature is over...
