Amazing Microelectronic AZRS6605
The AZRS6605 features a fail-safe receiver, which guarantees the output of the receiver to be logic high when the differential inputs (bus pins, A and B) of the receiver are open, short or idle under abnormal operating conditions. The AZRS6605 features a hot-swap glitch-free design which guarantees outputs of the transmitter and the receiver in a high impedance state and even no short current event during the power up period. The AZRS6605 has the current limited function in the transmitter to protect the device from damage by system fault conditions during normal operating condition.| Part No. | AZRS6605 |
|---|---|
| Datasheet | AZRS6605 Download |
| Manufacturer |  Amazing Microelectronic |
| Description | High Speed True Fail-Safe RS485 Transceiver IC |
| Buy | Stock & Price |

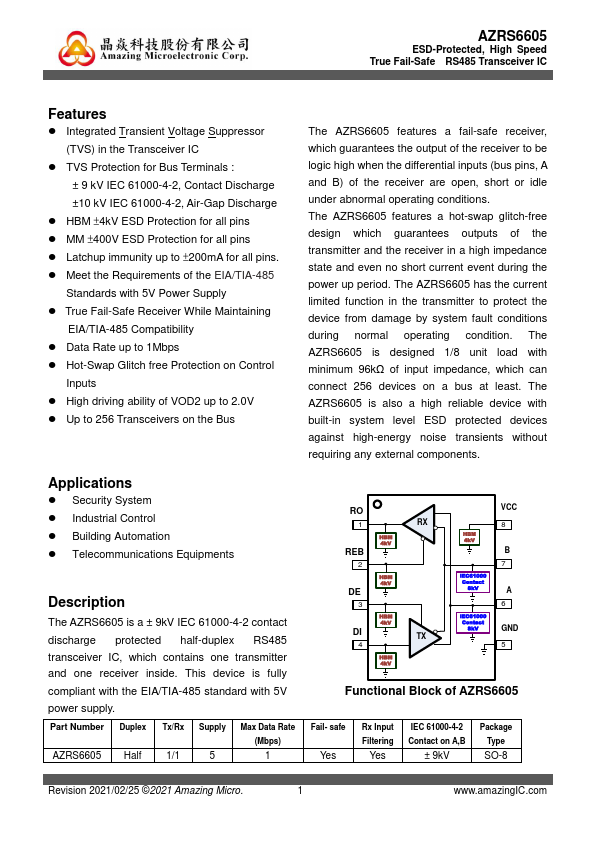

FEATURES
● Integrated Transient Voltage Suppressor (TVS) in the Transceiver IC● TVS Protection for Bus Terminals : ± 9 kV IEC 61000-4-2, Contact Discharge ±10 kV IEC 61000-4-2, Air-Gap Discharge
● HBM ±4kV ESD Protection for all pins
● MM ±400V ESD Protection for all pins
● Latchup immunity up to ±200mA for all pins.
● Meet the Requirements of the EIA/TIA-485 Standards with 5V Power Supply
● True Fail-Safe Receiver While Maintaining EIA/TIA-485 Compatibility
● Data Rate up to 1Mbps
● Hot-Swap Glitch free Protection on Control Inputs
● High driving ability of VOD2 up to 2.0V
● Up to 256 Transceivers on the Bus The AZRS6605 is designed 1/8 unit load with minimum 96kΩ of input impedance, which can connect 256 devices on a bus at least. The AZRS6605 is also a high reliable device with built-in system level ESD protected devices against high-energy noise transients without requiring any external components.
APPLICATIONS
● Security System● Industrial Control
● Building Automation
● Telecom...
