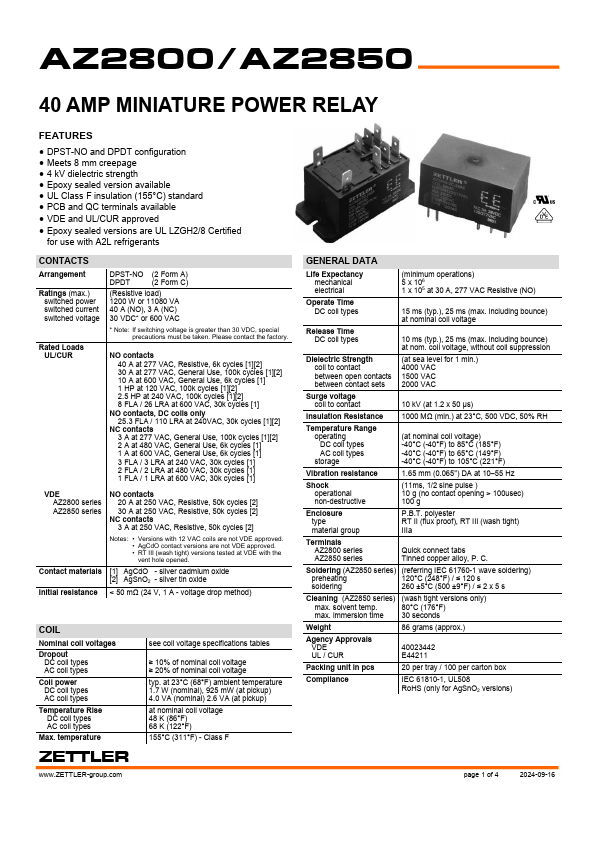

Datasheet Summary
AZ2800/AZ2850
40 AMP MINIATURE POWER RELAY
Features
- DPST-NO and DPDT configuration
- Meets 8 mm creepage
- 4 kV dielectric strength
- Epoxy sealed version available
- UL Class F insulation (155°C) standard
- PCB and QC terminals available
- VDE and UL/CUR approved
- Epoxy sealed versions are UL LZGH2/8 Certified for use with A2L refrigerants
CONTACTS
Arrangement
Ratings (max.) switched power switched current switched voltage
Rated Loads UL/CUR
DPST-NO (2 Form A)
DPDT
(2 Form C)
(Resistive load) 1200 W or 11080 VA 40 A (NO), 3 A (NC) 30 VDC- or 600 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
NO contacts...
