AZ8521 - SUBMINIATURE SIGNAL RELAY

Features

Conforms to IEC60950/EN41003 spacing and high breakdown voltage.
Monostable and bistable (latching) coil versions available.
High dielectric and surge voltage: 2.5 KV surge (per FCC Part 68) and meets Telcordia.
Low power consumption: 64 mW pickup.
Stable contact resistance for low level signal switching.
UL , CUR E43203.

Datasheet Details

Part number	AZ8521
Manufacturer	American Zettler
File Size	728.26 KB
Description	SUBMINIATURE SIGNAL RELAY
Datasheet	AZ8521 Datasheet

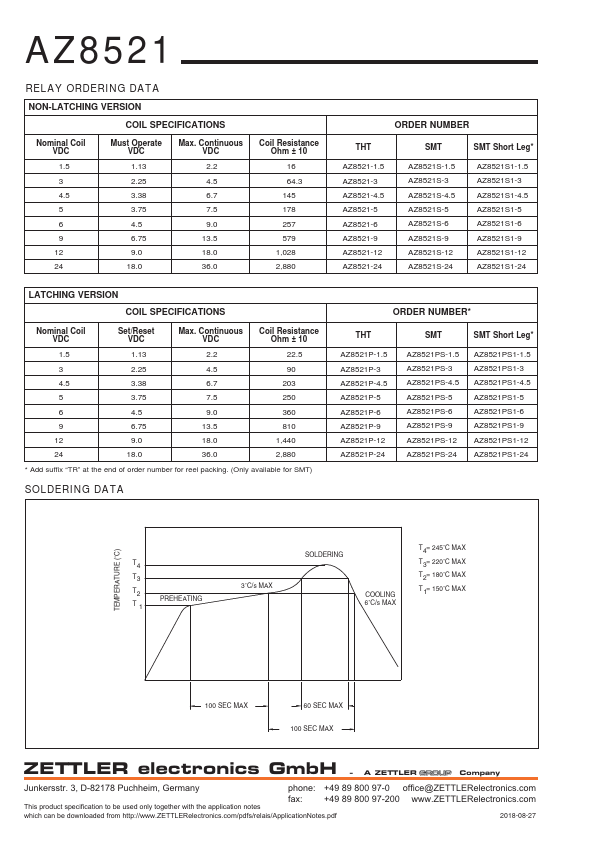

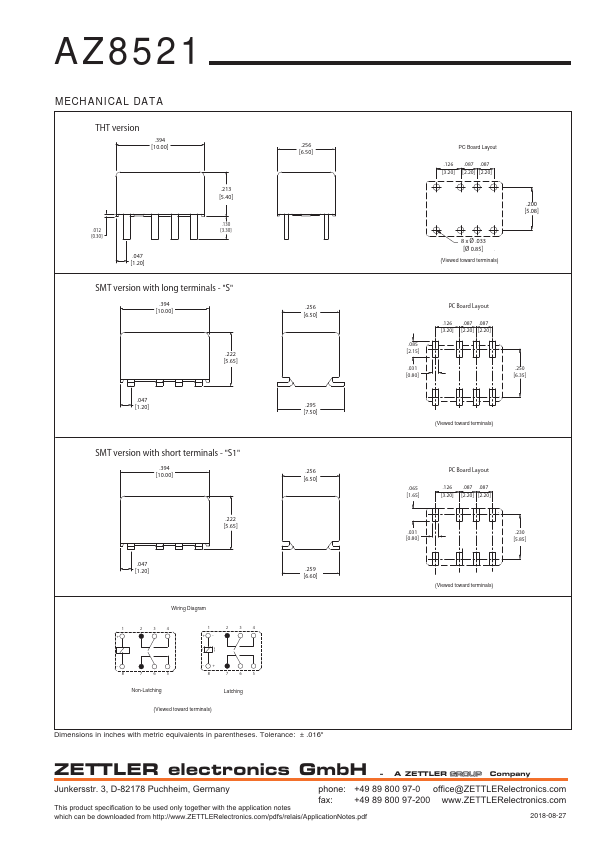

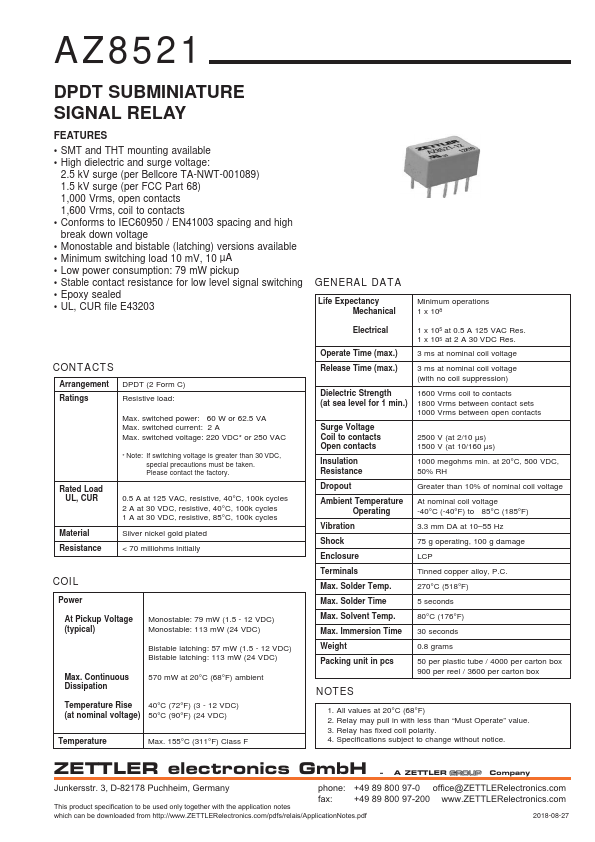

Additional preview pages of the AZ8521 datasheet.
