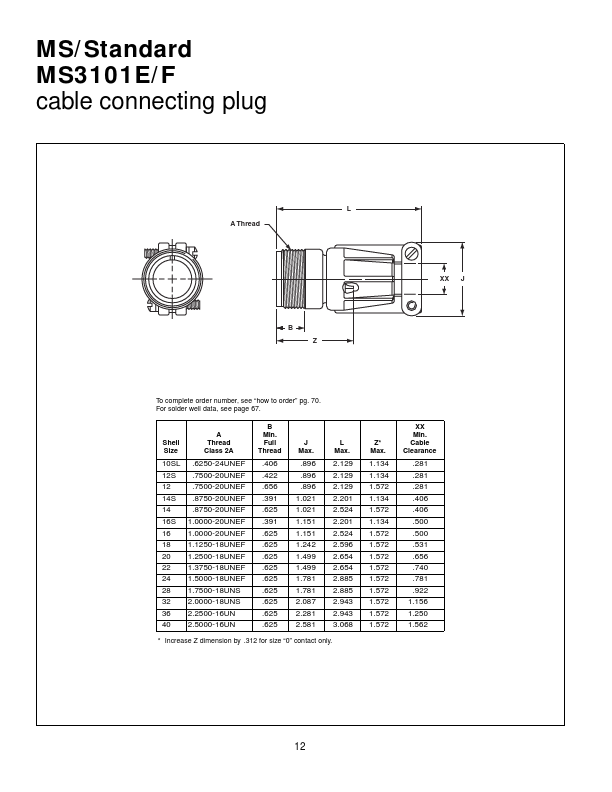

MS/Standard MS3101E/F cable connecting plug L A Thread B Z XX J To complete order number, see “how to order” pg. 70. For solder well data, see page 67. Shell Size A Thread Class 2A 10SL 12S 12 14S 14 16S 16 .6250-24UNEF .7500-20UNEF .7500-20UNEF .8750-20UNEF .8750-20UNEF 1.0000-20UNEF 1.0000-20UNEF 18 1.1250-18UNEF 20 1.2500-18UNEF 22 1.3750-18UNEF 24 1.5000-18UNEF 28 1.7500-18UNS 32 2.0000-18UNS 36 2.2500-16UN 40 2.5000-16UN B Min. Full Thread .406 .422 .656 .391 .625 .391 .625 .625 .625 .625 .625 .625 .625 .625 .625 J Max. .896 .896 .896 1.021 1.021 1.151 1.151 1.242 1.499 1.499 1.781 1.781 2.087 2.281 2.581 L Max. 2.129 2.129 2.129 2.201 2.524 2.201 2.524 2.596 2.654 2.654 2.885 2.885 2.943 2.943 3.068 * Increase Z dimension by .312 for size “0” contact only. Z* Max. 1.134 1.134 1.572 1.134 1.572 1.134 1.572 1.572 1.572 1.572 1.572 1.572 1.572 1.572 1.572 XX Min. Cable Clearance .281 .281 .281 .406 .406 .500 .500 .531 .656 .740 .781 .922 1.156 1.250 1.562 12
