Amphend MS3106F
straight plug
| Part No. | MS3106F |
|---|---|
| Datasheet | MS3106F Download |
| Manufacturer | Amphend |
| Description | straight plug |
| Buy | Stock & Price |

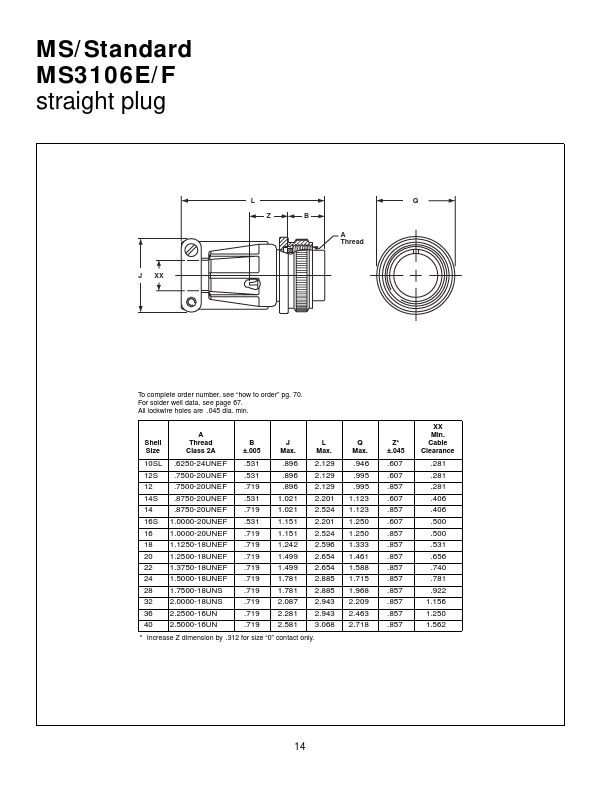

MS/Standard MS3106E/F straight plug J XX L Q Z B A Thread To complete order number, see “how to order” pg. 70. For solder well data, see page 67. All lockwire holes are .045 dia. min. Shell Size A Thread Class 2A B ±.005 J Max. L Max. 10SL .6250-24UNEF .531 .896 2.129 12S .7500-20UNEF .531 .896 2.129 12 .7500-20UNEF .719 .896 2.129 14S .8750-20UNEF .531 1.021 2.201 14 .8750-20UNEF .719 1.021 2.524 16S 1.0000-20UNEF .531 1.151 2.201 16 1.0000-20UNEF .719 1.151 2.524 18 1.1250-18UNEF .719 1.242 2.596 20 1.2500-18UNEF .719 1.499 2.654 22 1.3750-18UNEF .719 1.499 2.654 24 1.5000-18UNEF .719 1.781 2.885 28 1.7500-18UNS .719 1.781 2.885 32 2.0000-18UNS .719 2.087 2.943 36 2.2500-16UN .719 2.281 2.943 40 2.5000-16UN .719 2.581 3.068 * Increase Z dimension by .312 for size “0” contact only. Q Max. .946 .995 .995 1.123 1.123 1.250 1.250 1.333 1.461 1.588 1.715 1.968 2.209 2.463 2.718 Z* ±.045 .607 .607 .857 .607 .857 .607 .857 .857 .857 .857 .857 .857 .857 .857 .857 XX Min. Cable Clearance .281...
