AD5344 - Parallel Interface Quad Voltage-Output DACs

This page provides the datasheet information for the AD5344, a member of the AD5334 Parallel Interface Quad Voltage-Output DACs family.

Description

The AD5334/AD5335/AD5336/AD5344 are quad 8-, 10-, and 12-bit DACs.

They operate from a 2.5 V to 5.5 V supply consuming just 500 µA at 3 V, and feature a power-down mode that further reduces the current to 80 nA.

Features

  • AD5334: Quad 8-Bit DAC in 24-Lead TSSOP AD5335: Quad 10-Bit DAC in 24-Lead TSSOP AD5336: Quad 10-Bit DAC in 28-Lead TSSOP AD5344: Quad 12-Bit DAC in 28-Lead TSSOP Low Power Operation: 500 ␮A @ 3 V, 600 ␮A @ 5 V Power-Down to 80 nA @ 3 V, 200 nA @ 5 V via PD Pin 2.5 V to 5.5 V Power Supply Double-Buffered Input Logic Guaranteed Monotonic by Design Over All Codes Output Range: 0.
  • VREF or 0.
  • 2 VREF Power-On Reset to Zero Volts Simultaneous Update of DAC Outputs via LDAC Pin Asynchron.

📥 Download Datasheet

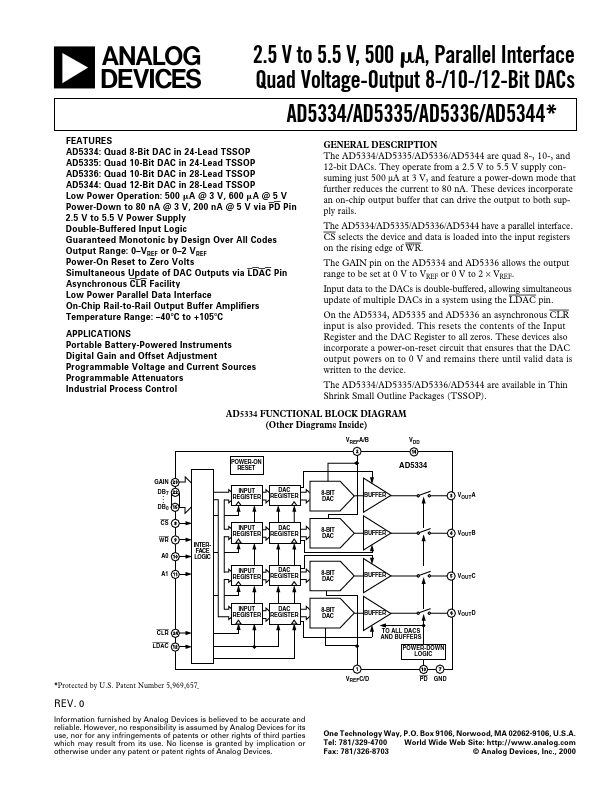

Datasheet preview – AD5344

Datasheet Details

Part number AD5344
Manufacturer Analog Devices
File Size 385.09 KB
Description Parallel Interface Quad Voltage-Output DACs
Datasheet download datasheet AD5344 Datasheet

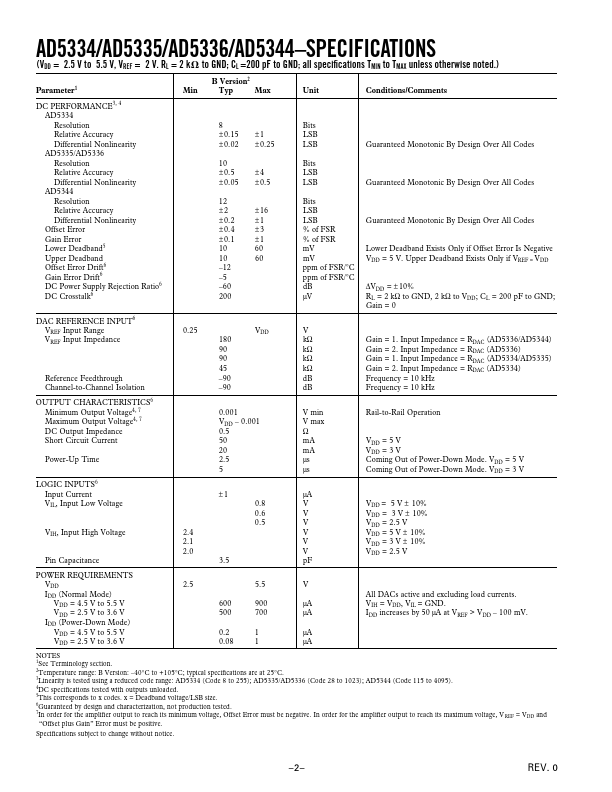

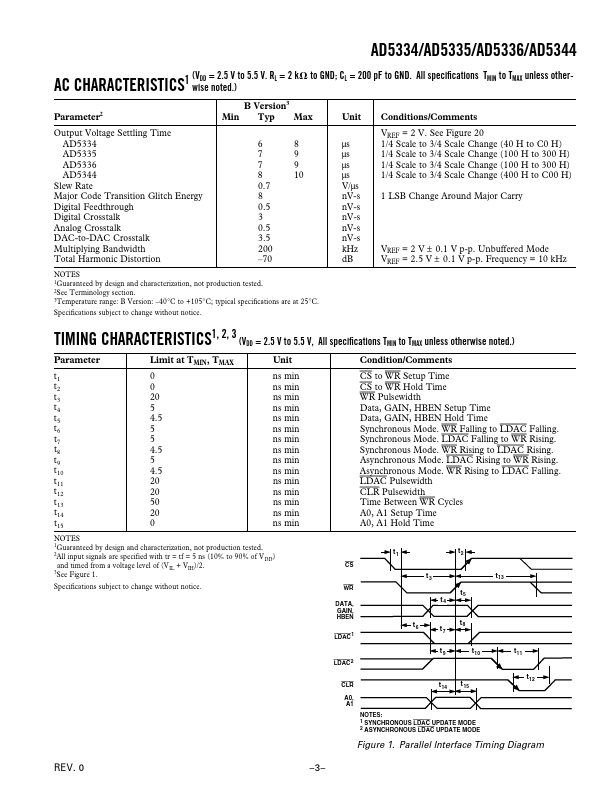

Additional preview pages of the AD5344 datasheet.

📁 Similar Datasheet

  • AD5300T - 300V 5A Ultra Low VF Schottky (AP Semiconductor)
  • AD5354 - Low Power 20bit (AKM)
  • AD500-9 - Avalanche Photodiode (Silicon Sensor)
  • AD500-9 - APD (First Sensor)
  • AD500-9-400M-TO5 - APD Hybrid (First Sensor)
  • AD5012N2L - AC-DC / External Freestanding Adapter (Emerson)
  • AD5012N2LM - AC-DC / External Freestanding Medical Adapter (Emerson)
  • AD5012N3L - AC-DC / External Freestanding Adapter (Emerson)
  • AD5012N3LM - AC-DC / External Freestanding Medical Adapter (Emerson)
  • AD5026 - 16-BIT CONSTANT-CURRENT LED DRIVER (AiT Semiconductor)
Other Datasheets by Analog Devices
  • AD534 - Internally Trimmed Precision IC Multiplier
  • AD5340 - Parallel Interface Single Voltage-Output 8-/10-/12-Bit DACs
  • AD5341 - Parallel Interface Single Voltage-Output 8-/10-/12-Bit DACs
  • AD5342 - Parallel Interface Dual Voltage-Output 8-/10-/12-Bit DACs
  • AD5343 - Parallel Interface Dual Voltage-Output 8-/10-/12-Bit DACs
  • AD5346 - Parallel Interface Octal Voltage Output 8-/10-/12-Bit DACs
  • AD5347 - Parallel Interface Octal Voltage Output 8-/10-/12-Bit DACs
  • AD5348 - Parallel Interface Octal Voltage Output 8-/10-/12-Bit DACs

Full PDF Text Transcription

Click to expand full text
a 2.5 V to 5.5 V, 500 ␮A, Parallel Interface Quad Voltage-Output 8-/10-/12-Bit DACs AD5334/AD5335/AD5336/AD5344* FEATURES AD5334: Quad 8-Bit DAC in 24-Lead TSSOP AD5335: Quad 10-Bit DAC in 24-Lead TSSOP AD5336: Quad 10-Bit DAC in 28-Lead TSSOP AD5344: Quad 12-Bit DAC in 28-Lead TSSOP Low Power Operation: 500 ␮A @ 3 V, 600 ␮A @ 5 V Power-Down to 80 nA @ 3 V, 200 nA @ 5 V via PD Pin 2.5 V to 5.
