AD571 - 10-Bit A/D Converter

Product Overview

Analog Devices

Datasheet Details

Part number	AD571
Manufacturer	Analog Devices
File Size	295.96 KB
Description	10-Bit A/D Converter
Datasheet	AD571 Datasheet

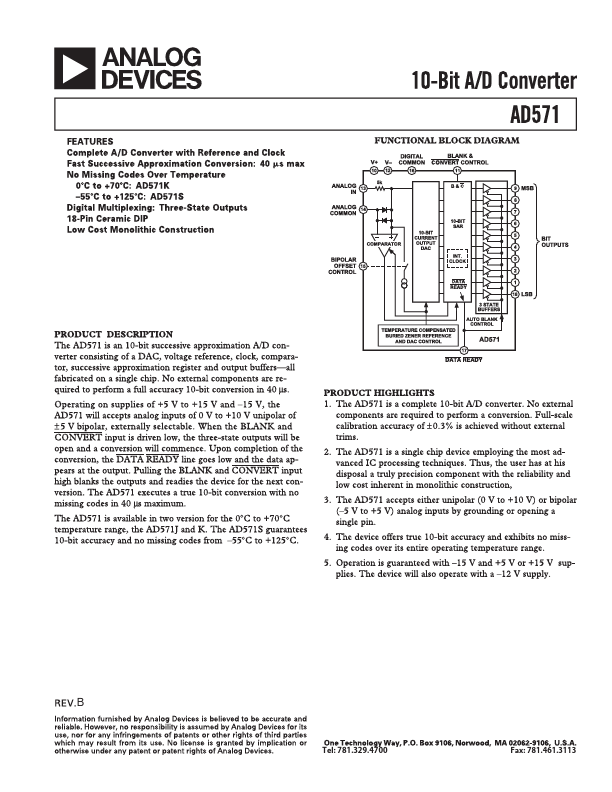

Additional preview pages of the AD571 datasheet.

Product details

Description

The AD571 is an 10-bit successive approximation A/D converter consisting of a DAC, voltage reference, clock, comparator, successive approximation register and output buffers all fabricated on a single chip. 15 V, the AD571 will accepts analog inputs of 0 V to +10 V unipolar of ± 5 V bipolar, externally selectable.

Features

Complete A/D Converter with Reference and Clock Fast Successive Approximation Conversion: 40 ␮ s max No Missing Codes Over Temperature 0 ؇ C to +70؇ C: AD571K.
55؇ C to +125؇C: AD571S Digital Multiplexing: Three-State Outputs 18-Pin Ceramic DIP Low Cost Monolithic Construction V+ 10 10-Bit A/D Converter AD571.
