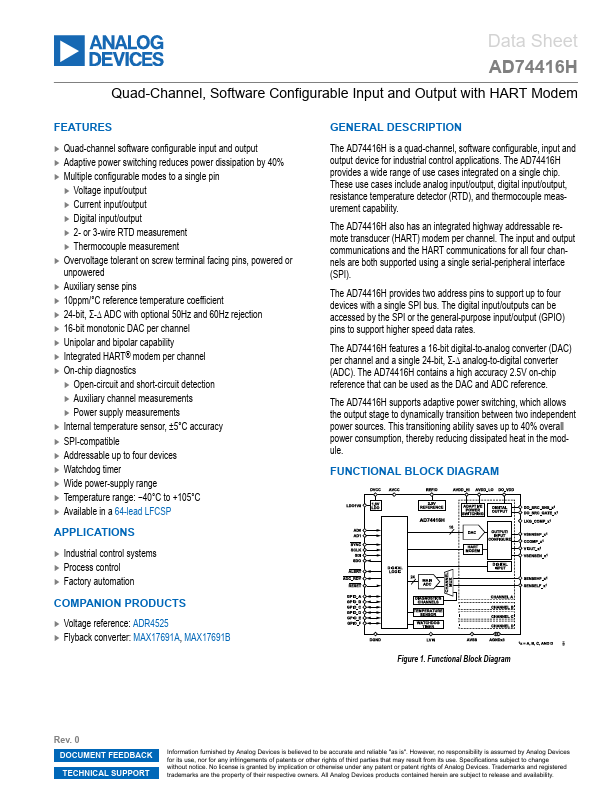

AD74416H Description
The AD74416H is a quad-channel, software configurable, input and output device for industrial control applications. The AD74416H provides a wide range of use cases integrated on a single chip. These use cases include analog input/output, digital input/output, resistance temperature detector (RTD), and thermocouple measurement capability.
AD74416H Key Features
- Quad-channel software configurable input and output
- Adaptive power switching reduces power dissipation by 40%
- Multiple configurable modes to a single pin
- Voltage input/output
- Current input/output
- Digital input/output
- 2- or 3-wire RTD measurement
- Thermocouple measurement
- Overvoltage tolerant on screw terminal facing pins, powered or unpowered
- Auxiliary sense pins
