Datasheet Summary

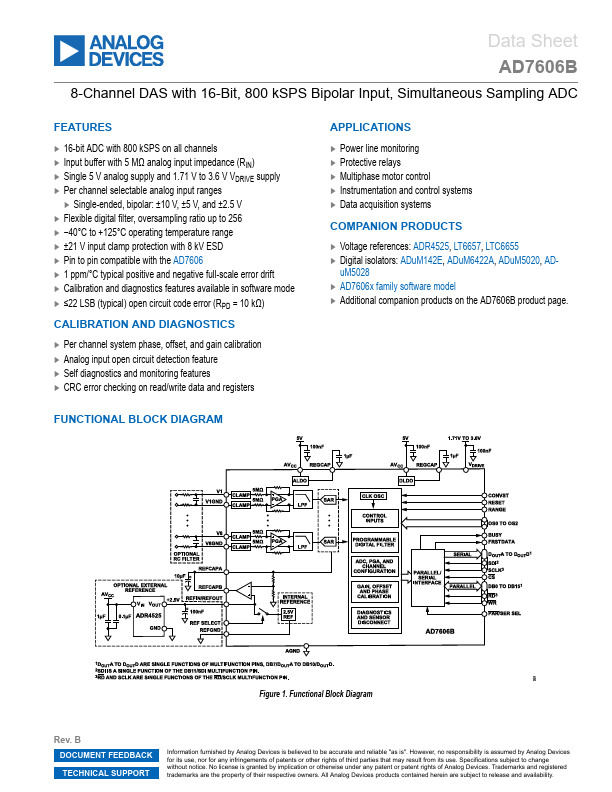

Data Sheet AD7606B
8-Channel DAS with 16-Bit, 800 kSPS Bipolar Input, Simultaneous Sampling ADC
Features
- 16-bit ADC with 800 kSPS on all channels
- Input buffer with 5 MΩ analog input impedance (RIN)
- Single 5 V analog supply and 1.71 V to 3.6 V VDRIVE supply
- Per channel selectable analog input ranges
- Single-ended, bipolar: ±10 V, ±5 V, and ±2.5 V
- Flexible digital filter, oversampling ratio up to 256
- - 40°C to +125°C operating temperature range
- ±21 V input clamp protection with 8 kV ESD
- Pin to pin patible with the AD7606
- 1 ppm/°C typical positive and negative full-scale error drift
- Calibration and diagnostics Features available in software mode
- ≤22 LSB (typical)...
