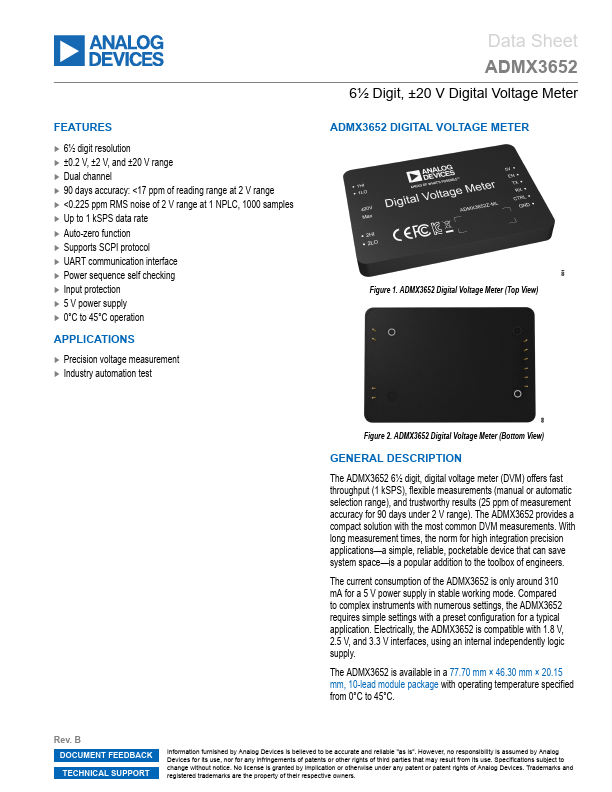

Features - 6½ digit resolution - ±0.2 V, ±2 V, and ±20 V range - Dual channel - 90 days accuracy: <17 ppm of reading range at 2 V range - <0.225 ppm RMS noise of 2 V range at 1 NPLC, 1000 samples - Up to 1 k SPS data rate - Auto-zero function - Supports SCPI protocol - UART munication interface - Power sequence self checking - Input protection - 5 V power supply - 0°C to 45°C operation APPLICATIONS - Precision voltage measurement - Industry automation test Data Sheet ADMX3652 6½ Digit, ±20 V Digital Voltage Meter ADMX3652 DIGITAL VOLTAGE METER Figure 1. ADMX3652 Digital Voltage Meter (Top View) Figure 2. ADMX3652 Digital Voltage Meter (Bottom View) GENERAL DESCRIPTION The ADMX3652 6½ digit, digital voltage meter (DVM) offers fast throughput (1 k SPS), flexible measurements (manual or automatic selection range), and trustworthy results (25 ppm of measurement accuracy for 90 days under 2 V range). The ADMX3652 provides a pact solution with the most mon DVM measurements. With long measurement times, the norm for high integration precision applications- a simple, reliable, pocketable device that can save system space- is a popular addition to the toolbox of engineers. The current consumption of the ADMX3652 is only around 310 m A for a 5 V power supply in stable working mode. pared to plex instruments with numerous settings, the ADMX3652 requires simple settings with a preset configuration for a typical application. Electrically, the ADMX3652 is patible with 1.8 V, 2.5 V, and 3.3 V interfaces, using an internal independently logic supply. The ADMX3652 is available in a 77.70 mm × 46.30 mm × 20.15 mm, 10-lead module package with operating temperature specified from 0°C to 45°C. Rev. B DOCUMENT FEEDBACK TECHNICAL SUPPORT Information furnished by Analog Devices is believed to be accurate and reliable "as is". However, no responsibility is assumed by Analog Devices for its use, nor for any infringements of patents or other rights of third parties that may...
