ADP161 - CMOS Linear Regulators

Download the ADP161 datasheet PDF. This datasheet also covers the ADP160 variant, as both devices belong to the same cmos linear regulators family and are provided as variant models within a single manufacturer datasheet.

Key Features

  • Ultralow quiescent current IQ = 560 nA with 0 µA load IQ = 860 nA with 1 µA load Stable with 1 µF ceramic input and output capacitors Maximum output current: 150 mA Input voltage range: 2.2 V to 5.5 V Low shutdown current:.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ADP160-AnalogDevices.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
ADP1101 PRECISION SEMICONDUCTOR PRESSURE SENSOR ETC
ADP1111 PRECISION SEMICONDUCTOR PRESSURE SENSOR ETC
ADP1121 PRECISION SEMICONDUCTOR PRESSURE SENSOR ETC
ADP1131 PRECISION SEMICONDUCTOR PRESSURE SENSOR ETC
ADP1132 PRECISION SEMICONDUCTOR PRESSURE SENSOR ETC

Other Datasheets by Analog Devices

Part Number Description
ADP1610 1.2 MHz DC-DC Step-Up Switching Converter
ADP1611 1.2 MHz Step-Up DC-to-DC Switching Converter
ADP1612 PWM DC-to-DC Switching Converter
ADP1613 PWM DC-to-DC Switching Converter
ADP1614 DC-to-DC Switching Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

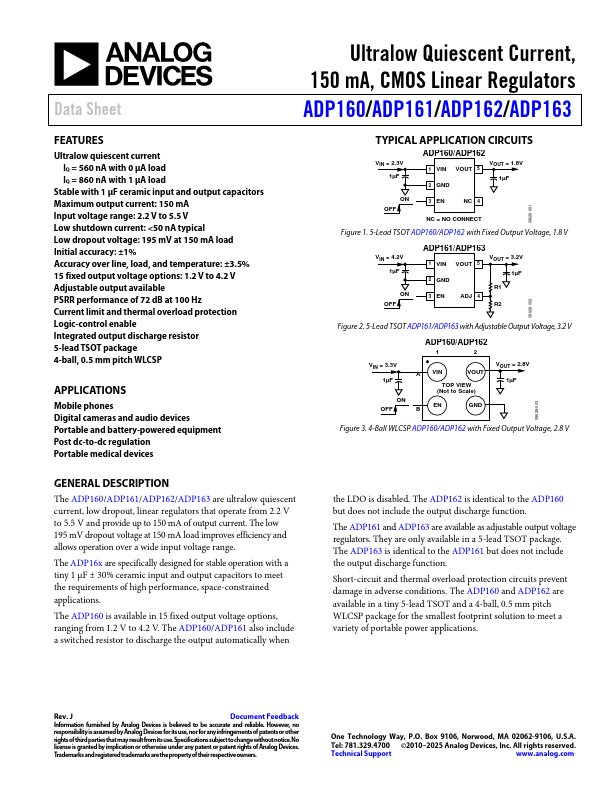

Data Sheet Ultralow Quiescent Current, 150 mA, CMOS Linear Regulators ADP160/ADP161/ADP162/ADP163 FEATURES Ultralow quiescent current IQ = 560 nA with 0 µA load IQ = 860 nA with 1 µA load Stable with 1 µF ceramic input and output capacitors Maximum output current: 150 mA Input voltage range: 2.2 V to 5.5 V Low shutdown current: <50 nA typical Low dropout voltage: 195 mV at 150 mA load Initial accuracy: ±1% Accuracy over line, load, and temperature: ±3.5% 15 fixed output voltage options: 1.2 V to 4.2 V Adjustable output available PSRR performance of 72 dB at 100 Hz Current limit and thermal overload protection Logic-control enable Integrated output discharge resistor 5-lead TSOT package 4-ball, 0.
