ADP3338 - 1A Low Dropout Regulator

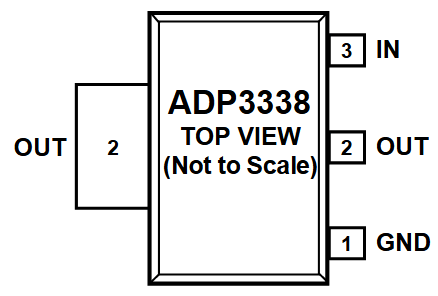

Description

The ADP3338 is a member of the ADP33xx family of precision, low dropout (LDO), anyCAP voltage regulators.

The ADP3338 operates with an input voltage range of 2.7 V to 8 V and delivers a load current up to 1 A.

Features

  • High accuracy over line and load: ±0.8% @ 25°C, ±1.4% over temperature Ultralow dropout voltage: 190 mV (typ) @ 1 A Requires only CO = 1.0 µF for stability anyCAP is stable with any type of capacitor (including MLCC) Current and thermal limiting Low noise 2.7 V to 8 V supply range.
  • 40°C to +85°C ambient temperature range SOT-223 package.

📥 Download Datasheet

Datasheet preview – ADP3338

Datasheet Details

Part number ADP3338
Manufacturer Analog Devices
File Size 289.22 KB
Description 1A Low Dropout Regulator
Datasheet download datasheet ADP3338 Datasheet
Additional preview pages of the ADP3338 datasheet.

📁 Similar Datasheet

  • ADP3110 - 12V MOSFET Driver (ON Semiconductor)
  • ADP3110A - 12V MOSFET Driver (ON Semiconductor)
  • ADP3120A - 12V MOSFET Driver (ON Semiconductor)
  • ADP3121 - 12V MOSFET Driver (ON Semiconductor)
  • ADP3164 - 5-Bit Programmable 4-Phase Synchronous Buck Controller (ON Semiconductor)
  • ADP3193A - Synchronous Buck Controller (ON Semiconductor)
  • ADP3207 - 7-Bit Programmable Multiphase Mobile CPU Synchronous Buck Controller (ON Semiconductor)
  • ADP3207C - CPU Synchronous Buck Controller (ON Semiconductor)
  • ADP3207D - 7-Bit Programmable Multi-Phase Mobile CPU Synchronous Buck Controller (ON Semiconductor)
  • ADP3208 - Synchronous Buck Controller (ON Semiconductor)
Other Datasheets by Analog Devices
  • ADP3330 - Low Dropout Regulator
  • ADP3331 - Adjustable Output Ultralow IQ/ 200 mA/ SOT-23/ anyCAP Low Dropout Regulator
  • ADP3333 - anyCAP Low Dropout Regulator
  • ADP3334 - Adjustable Low Dropout Regulator
  • ADP3335 - anyCAP Low Dropout Regulator
  • ADP3336 - Adjustable Low Dropout Regulator
  • ADP3339 - High-Accuracy Ultralow IQ/ 1.5 A/ anyCAP Low Dropout Regulator
  • ADP3300 - 50mA Low Dropout Linear Regulator

Full PDF Text Transcription

Click to expand full text
High Accuracy, Ultralow IQ, 1 A, anyCAP® Low Dropout Regulator ADP3338 FEATURES High accuracy over line and load: ±0.8% @ 25°C, ±1.4% over temperature Ultralow dropout voltage: 190 mV (typ) @ 1 A Requires only CO = 1.0 µF for stability anyCAP is stable with any type of capacitor (including MLCC) Current and thermal limiting Low noise 2.7 V to 8 V supply range −40°C to +85°C ambient temperature range SOT-223 package APPLICATIONS Notebook, palmtop computers SCSI terminators Battery-powered systems Bar code scanners Camcorders, cameras Home entertainment systems Networking systems DSP/ASIC supplies FUNCTIONAL BLOCK DIAGRAM IN Q1 THERMAL PROTECTION CC ADP3338 OUT R1 DRIVER gm BANDGAP REF R2 02050-001 VIN 1µF GND Figure 1. ADP3338 IN OUT GND VOUT 1µF 02050-002 Figure 2.
