ADUM4160 - Full/Low Speed 5 kV USB Digital Isolator

Description

The ADuM41601 is a USB port isolator, based on Analog Devices, Inc., iCoupler® technology.

Features

USB 2.0 compatible Low and full speed data rate: 1.5 Mbps and 12 Mbps Bidirectional communication 4.5 V to 5.5 V VBUS operation 7 mA maximum upstream supply current @ 1.5 Mbps 8 mA maximum upstream supply current @ 12 Mbps 2.3 mA maximum upstream idle current Upstream short-circuit protection Class 3A contact ESD performance per ANSI/ESD STM5.1-2007 High temperature operation: 105°C High common-mode transient immunity: >25 kV/μs 16-lead SOIC wide-body package version 16-lead SOIC wide body enhan.

Analog Devices

📥 Download Datasheet

Datasheet Details

Part number	ADUM4160
Manufacturer	Analog Devices
File Size	378.65 KB
Description	Full/Low Speed 5 kV USB Digital Isolator
Datasheet	ADUM4160 Datasheet

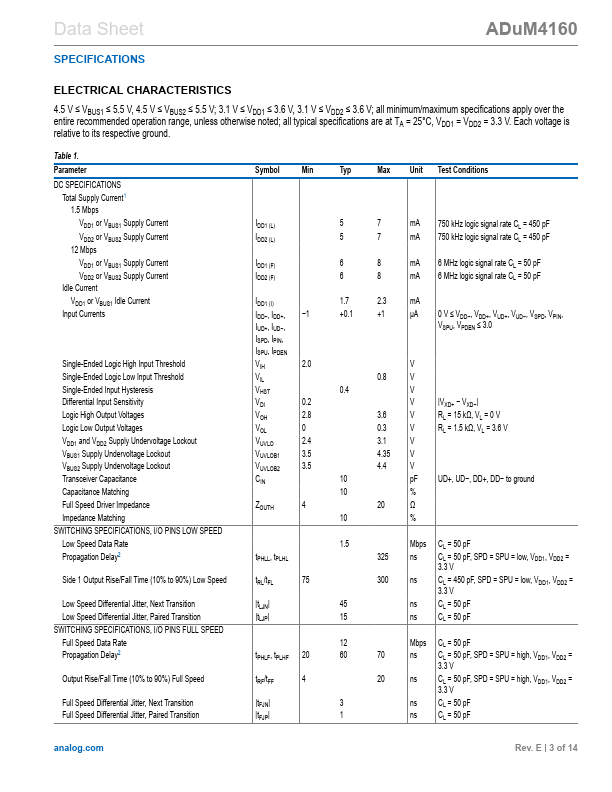

Additional preview pages of the ADUM4160 datasheet.

📁 Similar Datasheet

Other Datasheets by Analog Devices

ADuM4165 - 5.7kV RMS Digital Isolators
ADuM4166 - 5.7kV RMS Digital Isolators
ADuM4121 - High Voltage Isolated Gate Driver
ADuM4121-1 - High Voltage Isolated Gate Driver
ADuM4122 - Isolated Gate Driver
ADuM4135 - High Voltage Isolated IGBT Gate Driver
ADUM4136 - IGBT Gate Driver
ADuM4137 - Isolated IGBT Gate Driver

Full PDF Text Transcription

Click to expand full text

Data Sheet Full/Low Speed 5 kV USB Digital Isolator ADuM4160 FEATURES USB 2.0 compatible Low and full speed data rate: 1.5 Mbps and 12 Mbps Bidirectional communication 4.5 V to 5.5 V VBUS operation 7 mA maximum upstream supply current @ 1.5 Mbps 8 mA maximum upstream supply current @ 12 Mbps 2.3 mA maximum upstream idle current Upstream short-circuit protection Class 3A contact ESD performance per ANSI/ESD STM5.
