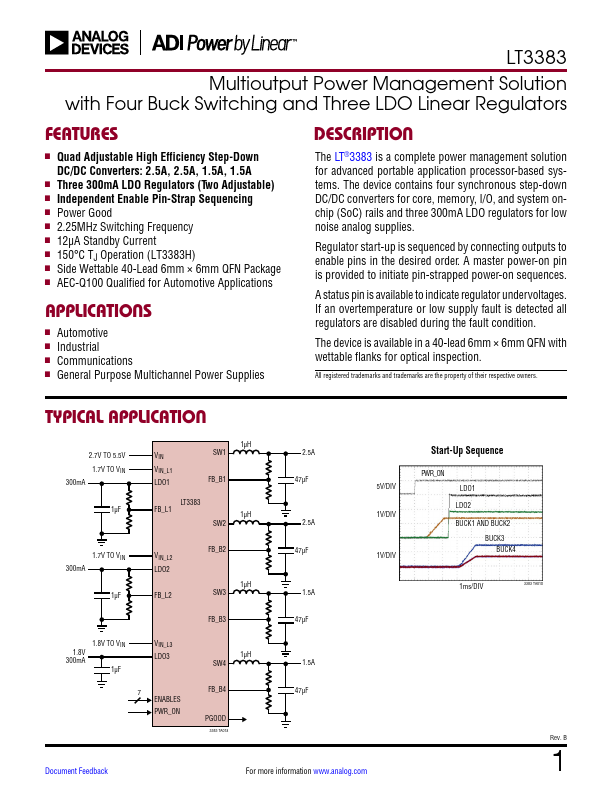

LT3383 Datasheet PDF | Analog Devices

Analog Devices LT3383

The LT®3383 is a complete power management solution for advanced portable application processor-based systems. The device contains four synchronous step-down DC/DC converters for core, memory, I/O, and system onchip (SoC) rails and three 300mA LDO regulators for low noise analog supplies.

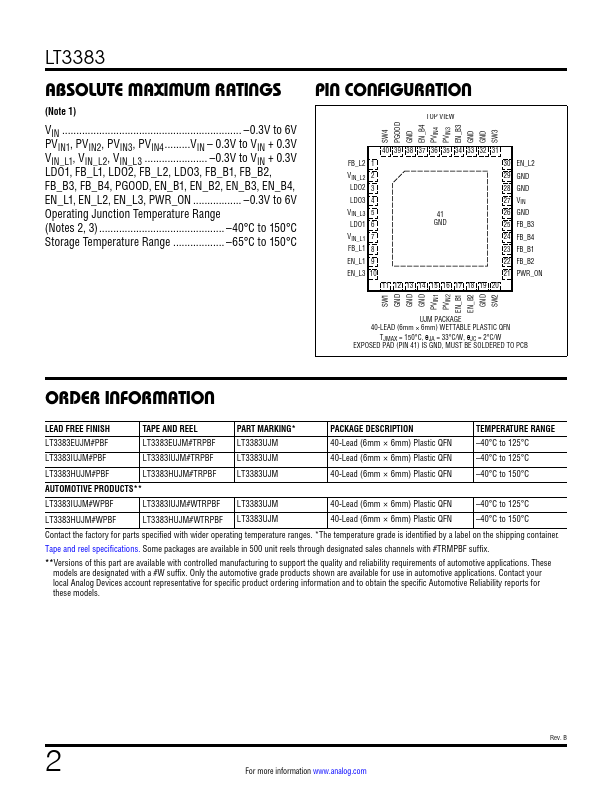

Part No.	LT3383
Datasheet	LT3383 Download
Manufacturer	Analog Devices
Description	Multioutput Power Management Solution with Four Buck Switching and Three LDO Linear Regulators
Buy	Stock & Price

FEATURES

n Quad Adjustable High Efficiency Step-Down DC/DC Converters: 2.5A, 2.5A, 1.5A, 1.5A n Three 300mA LDO Regulators (Two Adjustable) n Independent Enable Pin-Strap Sequencing n Power Good n 2.25MHz Switching Frequency n 12µA Standby Current n 150°C TJ Operation (LT3383H) n Side Wettable 40-Lead 6mm × 6mm QFN Package n AEC-Q100 Qualified for Automotive

APPLICATIONS

n Automotive n Industrial n Communications n General Purpose Multichannel Power Supplies

DESCRIPTION

Regulator start-up is sequenced by connecting outputs to enable pins in the desired order. A master power-on pin is provided to initiate pin-strapped power-on sequences. A status pin is available to indicate regulator undervoltages. If an overtemperature or low supply fault is detected all regulators are disabled during the fault condition. The device is available in a 40-lead 6mm × 6mm QFN with wettable flanks for optical inspection. All registered trademarks and trademarks are the property of their respective owners.
