MAX98357A Overview
Key Specifications
Mount Type: Surface Mount
Pins: 16
Max Voltage (typical range): 5.5 V
Min Voltage (typical range): 2.5 V

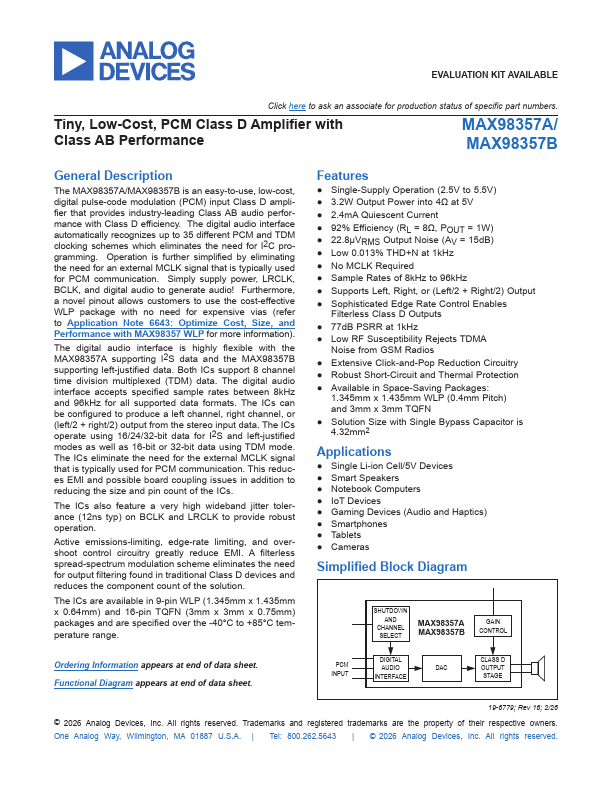

Description
The MAX98357A/MAX98357B is an easy-to-use, low-cost, digital pulse-code modulation (PCM) input Class D amplifier that provides industry-leading Class AB audio performance with Class D efficiency. The digital audio interface automatically recognizes up to 35 different PCM and TDM clocking schemes which eliminates the need for I2C programming.
Key Features
- a very high wideband jitter tolerance (12ns typ) on BCLK and LRCLK to provide robust operation
- Active emissions-limiting, edge-rate limiting, and overshoot control circuitry greatly reduce EMI
- A filterless spread-spect
