SSM2375 - Mono 3W Class-D Audio Amplifier

Description

The SSM2375 is a fully integrated, high efficiency, Class-D audio amplifier.

It is designed to maximize performance for mobile phone applications.

The application circuit requires a minimum of external components and operates from a single 2.5 V to 5.5 V supply.

Features

  • Filterless Class-D amplifier with spread-spectrum Σ-Δ modulation 3 W into 3 Ω load and 1.4 W into 8 Ω load at 5.0 V supply with 100 dB signal-to-noise ratio (SNR) High PSSR at 217 Hz: 80 dB Flexible gain adjustment pin: 0 dB to 12 dB in 3 dB steps Fixed input impedance: 80 kΩ User-selectable ultralow EMI emissions mode Single-supply operation from 2.5 V to 5.5 V 20 nA shutdown current Short-circuit and therm.

📥 Download Datasheet

📁 Similar Datasheet

  • SSM2300 - 8 Channel Multiplexed Smaple and Hold (Solid State Micro Technology)
  • SSM2300 - High Frequency Oscillater / Voltage to Frequency Converter (State Micro Technology)
  • SSM2301N - P-CHANNEL ENHANCEMENT-MODE POWER MOSFET (Silicon)
  • SSM2302N - N-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM2304AGN - N-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM2304N - N-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM2305AGN - P-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM2305GN - P-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM2306N - N-channel Enhancement-mode Power MOSFET (Silicon Standard)
  • SSM2307GN - P-channel Enhancement-mode Power MOSFET (Silicon Standard)
Other Datasheets by Analog Devices
  • SSM2377 - Mono 2.5 W Class-D Audio Amplifier
  • SSM2301 - Filterless High Efficiency Mono 1.4 W Class-D Audio Amplifier
  • SSM2302 - Filterless High Efficiency Class-D Stereo Audio Amplifier
  • SSM2304 - 2 W Filterless Class-D Stereo Audio Amplifier
  • SSM2305 - Filterless High Efficiency Mono 2.8 W Class-D Audio Amplifier
  • SSM2306 - Class-D Stereo Audio Amplifier
  • SSM2311 - Filterless High Efficiency Mono 3 W Class-D Audio Amplifier
  • SSM2315 - Filterless High Efficiency Mono 3W Class-D Audio Amplifier

Full PDF Text Transcription

Click to expand full text

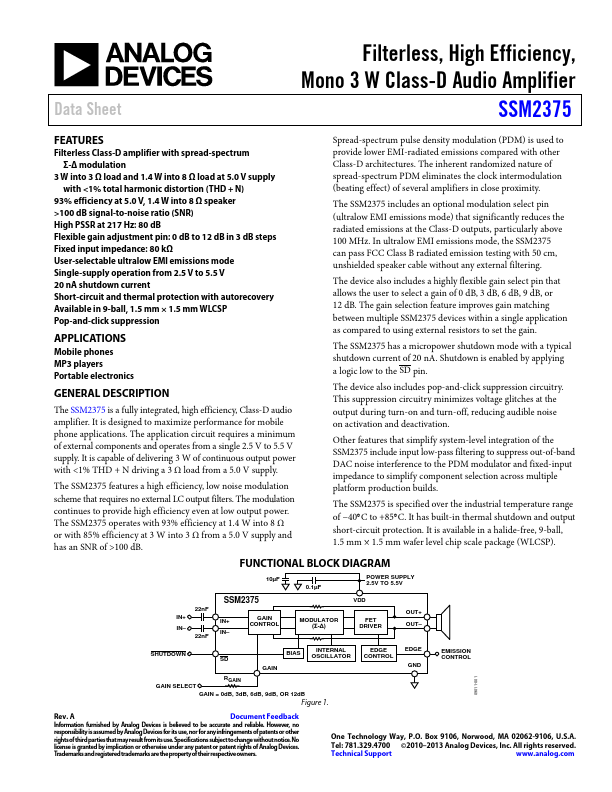

Data Sheet Filterless, High Efficiency, Mono 3 W Class-D Audio Amplifier SSM2375 FEATURES Filterless Class-D amplifier with spread-spectrum Σ-Δ modulation 3 W into 3 Ω load and 1.4 W into 8 Ω load at 5.0 V supply with <1% total harmonic distortion (THD + N) 93% efficiency at 5.0 V, 1.4 W into 8 Ω speaker >100 dB signal-to-noise ratio (SNR) High PSSR at 217 Hz: 80 dB Flexible gain adjustment pin: 0 dB to 12 dB in 3 dB steps Fixed input impedance: 80 kΩ User-selectable ultralow EMI emissions mode Single-supply operation from 2.5 V to 5.5 V 20 nA shutdown current Short-circuit and thermal protection with autorecovery Available in 9-ball, 1.5 mm × 1.
