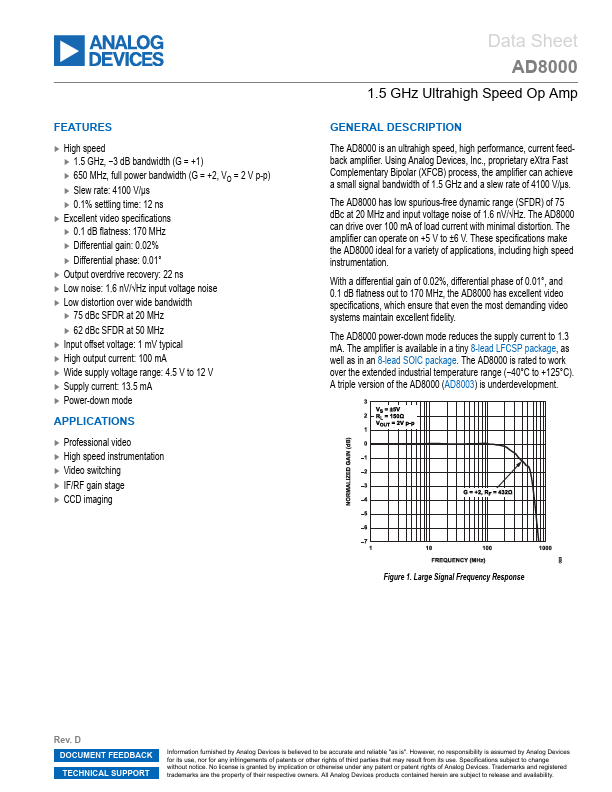

AD8000 Description
The AD8000 is an ultrahigh speed, high performance, current feedback amplifier. Using Analog Devices, Inc., proprietary eXtra Fast plementary Bipolar (XFCB) process, the amplifier can achieve a small signal bandwidth of 1.5 GHz and a slew rate of 4100 V/µs. The AD8000 has low spurious-free dynamic range (SFDR) of 75 dBc at 20 MHz and input voltage noise of 1.6 nV/√Hz.
AD8000 Key Features
- High speed
- 1.5 GHz, -3 dB bandwidth (G = +1)
- 650 MHz, full power bandwidth (G = +2, VO = 2 V p-p)
- Slew rate: 4100 V/µs
- 0.1% settling time: 12 ns
- Excellent video specifications
- 0.1 dB flatness: 170 MHz
- Differential gain: 0.02%
- Differential phase: 0.01°
- Output overdrive recovery: 22 ns
