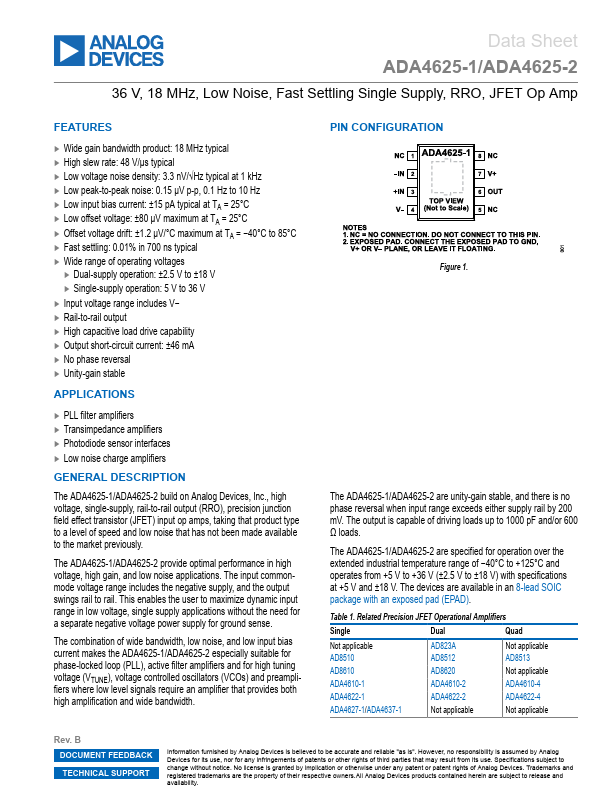

ADA4625-1 Description
The ADA4625-1/ADA4625-2 build on Analog Devices, Inc., high voltage, single-supply, rail-to-rail output (RRO), precision junction field effect transistor (JFET) input op amps, taking that product type to a level of speed and low noise that has not been made available to the market previously. The ADA4625-1/ADA4625-2 provide optimal performance in high voltage, high gain, and low noise applications. The input monmode...
ADA4625-1 Key Features
- Wide gain bandwidth product: 18 MHz typical
- High slew rate: 48 V/µs typical
- Low voltage noise density: 3.3 nV/√Hz typical at 1 kHz
- Low peak-to-peak noise: 0.15 µV p-p, 0.1 Hz to 10 Hz
- Low input bias current: ±15 pA typical at TA = 25°C
- Low offset voltage: ±80 µV maximum at TA = 25°C
- Offset voltage drift: ±1.2 µV/°C maximum at TA = -40°C to 85°C
- Fast settling: 0.01% in 700 ns typical
- Wide range of operating voltages
- Dual-supply operation: ±2.5 V to ±18 V
