EP91Z2E - 3 Ghz HDMI Repeater

Description

of Changes Initial Version Revise the 1.8V Range; Integrate the Design Guide; Confidential foronAlrryival Components use Explore Confidential Proprietry NON-DISCLOSURE AGREEMENT REQUIRED 2 Confidential foronAlrryival Components use Data Sheet

1.

Features

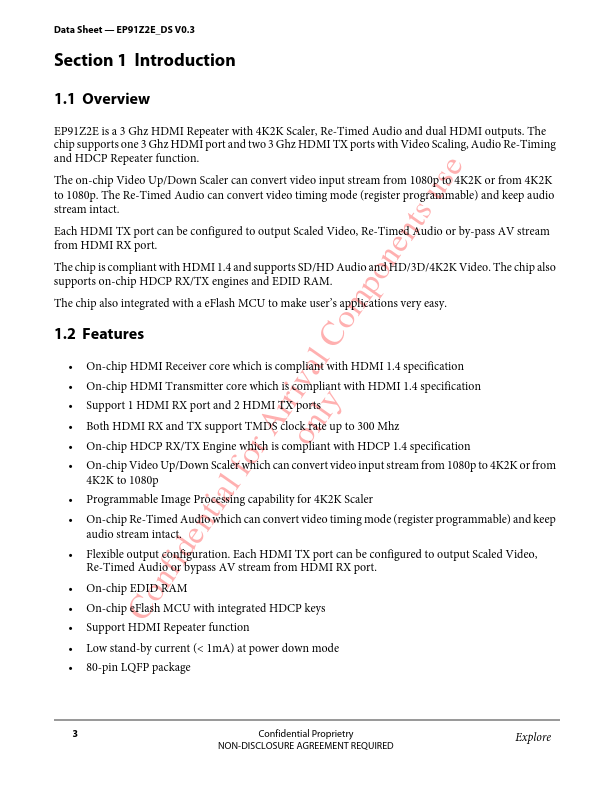

  • On-chip HDMI Receiver core which is compliant with HDMI 1.4 specification.
  • On-chip HDMI Transmitter core which is compliant with HDMI 1.4 specification.
  • Support 1 HDMI RX port and 2 HDMI TX ports.
  • Both HDMI RX and TX support TMDS clock rate up to 300 Mhz.
  • On-chip HDCP RX/TX Engine which is compliant with HDCP 1.4 specification.
  • On-chip Video Up/Down Scaler which can convert video input stream from 1080p to 4K2K or from 4K2K to 1080p.

📥 Download Datasheet

Datasheet preview – EP91Z2E

Datasheet Details

Part number EP91Z2E
Manufacturer Arrival Components
File Size 187.50 KB
Description 3 Ghz HDMI Repeater
Datasheet download datasheet EP91Z2E Datasheet

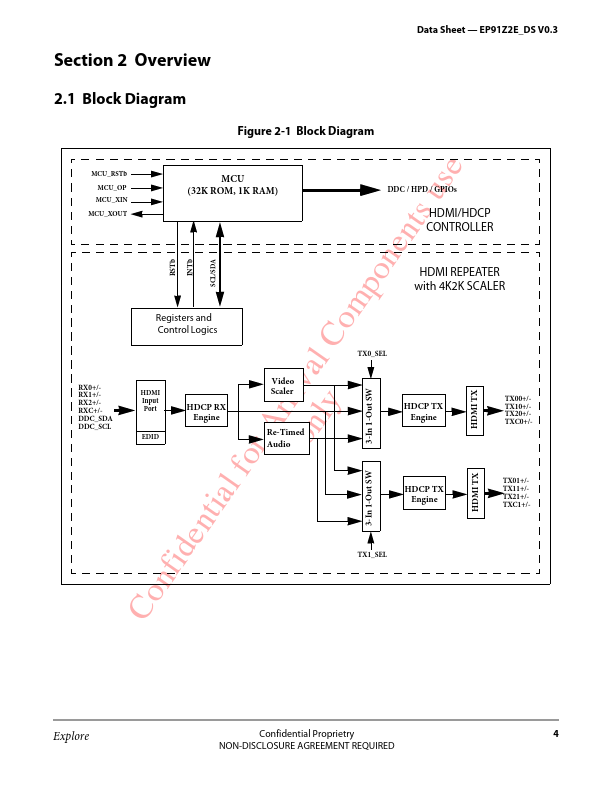

Additional preview pages of the EP91Z2E datasheet.

📁 Similar Datasheet

  • EP910 - EPLD (Altera)
  • EP9100 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9101 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9102 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9103 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9104 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9105 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9106 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9107 - SMD 28 Pin 5 Tap TTL (PCA)
  • EP9108 - SMD 28 Pin 5 Tap TTL (PCA)
Other Datasheets by Arrival Components

    Full PDF Text Transcription

    Click to expand full text

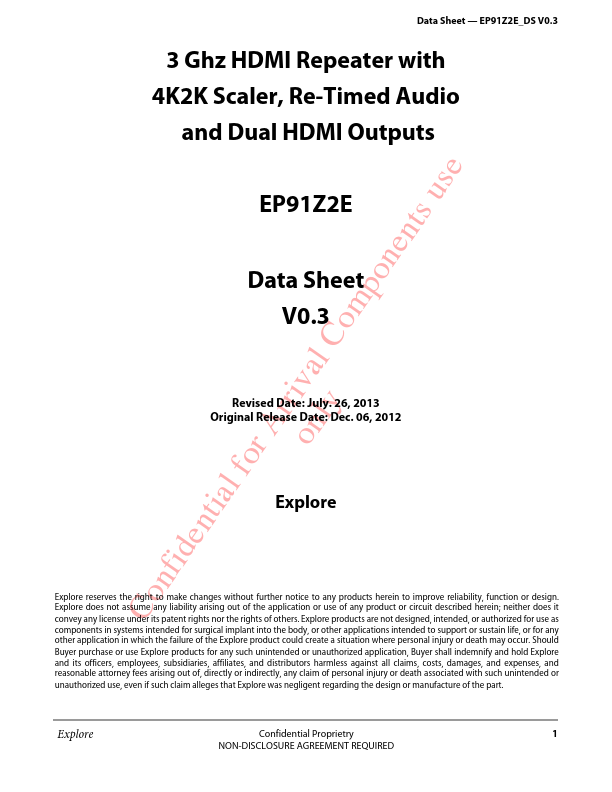

    Confidential foronAlrryival Components use Data Sheet — EP91Z2E_DS V0.3 3 Ghz HDMI Repeater with 4K2K Scaler, Re-Timed Audio and Dual HDMI Outputs EP91Z2E Data Sheet V0.3 Revised Date: July. 26, 2013 Original Release Date: Dec. 06, 2012 Explore Explore reserves the right to make changes without further notice to any products herein to improve reliability, function or design. Explore does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others.
