AM6031 - DC to 20 GHz SPDT

Description

AM6031 is a Single-Pole Double-Throw (SPDT) absorptive switch covering the DC to 20 GHz frequency range.

The positive control device exhibits high isolation and low insertion loss over the operating temperature range of -40C to +85C.

Features

  • 1.5 dB Insertion Loss.
  • +45 dBm Input IP3.
  • +3.3V to +5.0V Supply.
  • +3.3V to +5.0V Control.
  • >43 dB Isolation.
  • 3mm QFN.
  • -40C to +85C Operation Functional Diagram VDD RF1 RFC RF2 CTL (dB) (dB) Characteristic Performance Frequency Response at +25C 0 -5 S21 +25C S11 +25C -10 S22 +25C -15 -20 -25 -30 0 2 4 6 8 10 12 14 16 18 20 22 24 Frequency (GHz) Isolation at +25C 0 S21 (RF1 Off, RF2 On) -10 S31 (RF1 On, RF2 Off) -20 S32 -30 -40.

📥 Download Datasheet

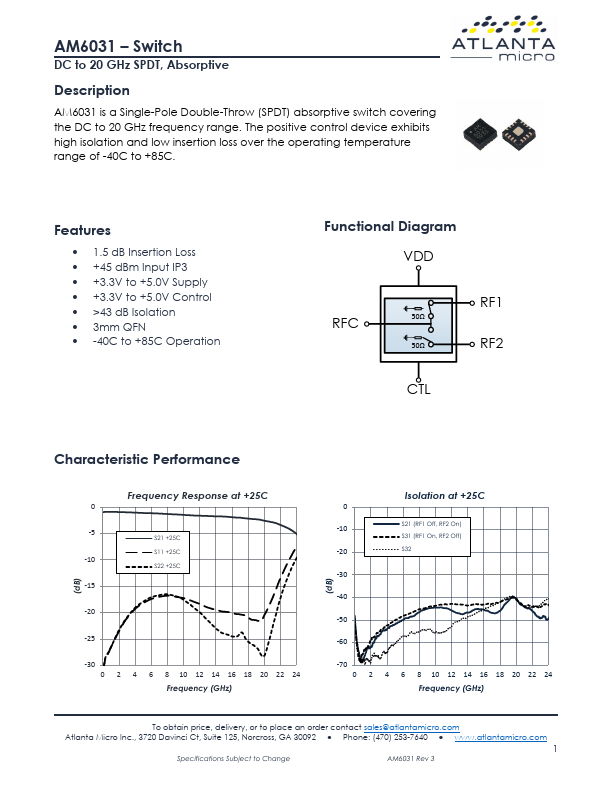

Datasheet preview – AM6031

Datasheet Details

Part number AM6031
Manufacturer Atlanta Micro
File Size 388.73 KB
Description DC to 20 GHz SPDT
Datasheet download datasheet AM6031 Datasheet

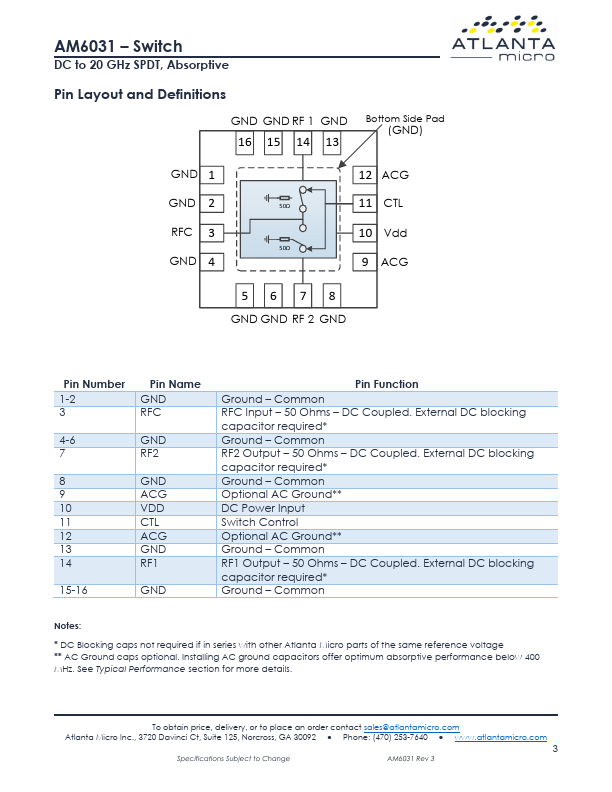

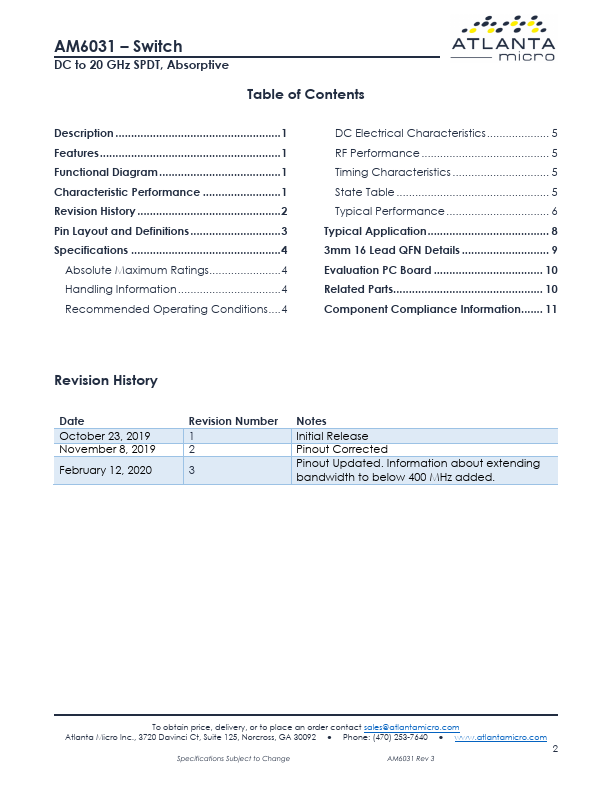

Additional preview pages of the AM6031 datasheet.

📁 Similar Datasheet

  • AM6003 - 3A N-CH MOSFET (AiT Semiconductor)
  • AM6012 - 12-Bit multiplying D/A converter (NXP)
  • AM6071 - Companding D-to-A Converter (AMD)
  • AM6080 - Microprocessor System Compatible 8-Bit High Speed Multiplying D/A Converter (AMD)
  • AM60N02-09D - N-Channel MOSFET (Analog Power)
  • AM60N02-10D - N-Channel MOSFET (Analog Power)
  • AM60N03-09D - N-Channel MOSFET (Analog Power)
  • AM60N04 - 60A N-CH FAST SWITCHING MOSFETS (AiT Semiconductor)
  • AM60N04-12D - N-Channel MOSFET (Analog Power)
  • AM60N10-70P - MOSFET (Analog Power)
Other Datasheets by Atlanta Micro

    Full PDF Text Transcription

    Click to expand full text
    AM6031 – Switch DC to 20 GHz SPDT, Absorptive Description AM6031 is a Single-Pole Double-Throw (SPDT) absorptive switch covering the DC to 20 GHz frequency range. The positive control device exhibits high isolation and low insertion loss over the operating temperature range of -40C to +85C. Features • 1.5 dB Insertion Loss • +45 dBm Input IP3 • +3.3V to +5.0V Supply • +3.3V to +5.
