Avago Technologies AFBR-5302Z
The AFBR-5302Z Fibre Channel Transceivers from Avago Technologies provide the system designer with products to implement Fibre Channel designs for use in multimode fiber (MMF) applications. This includes the 25 MB/ sec, 25-M6-LE-I interface for 1300 nm LED links. The products are produced in the industry standard 1x9 SIP package style with a duplex SC connector interface as defined in the Fiber Channel ANSI FC-PH standard document.| Part No. | AFBR-5302Z |
|---|---|
| Datasheet | AFBR-5302Z Download |
| Manufacturer |  Avago Technologies |
| Description | Fibre Channel 266 MBd Transceiver |
| Buy | Stock & Price |
DESCRIPTION
The AFBR-5302Z is a 1300 nm transceiver specified for use in 266 MBd, 25 MB/s, 25-M6LE-I Fibre Channel interfaces to either 62.5/ 125 mm or 50/125 mm multimode fiber-optic cables.FEATURES
● Fully RoHS Compliant● Full Compliance with ANSI X3T11 Fibre Channel Physical and Signaling Interface
● Multisourced 1x9 Package Style with Duplex SC Connector
● Wave Solder and Aqueous Wash Process Compatibility
● Compatible with Various Manufacturers FC-0 and FC-1 Circuits
APPLICATIONS

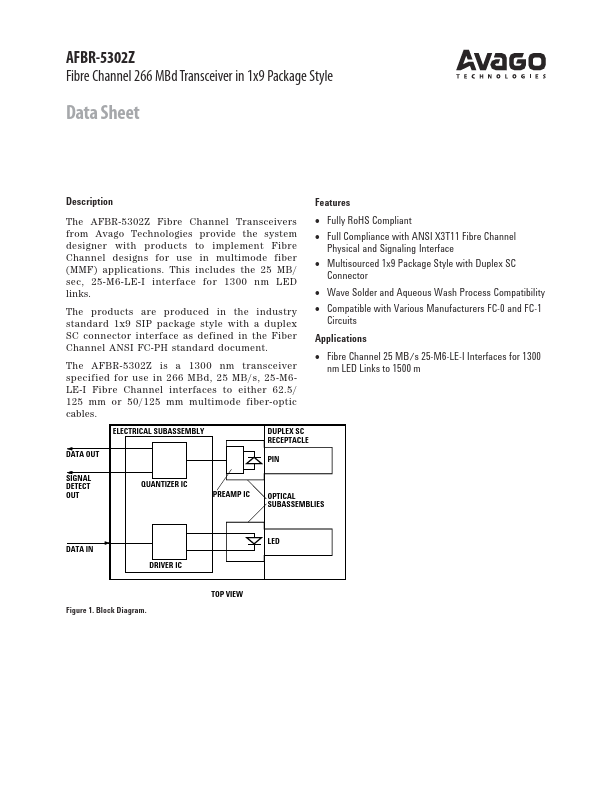

● Fibre Channel 25 MB/s 25-M6-LE-I Interfaces for 1300 nm LED Links to 1500 m ELECTRICAL SUBASSEMBLY DATA OUT DUPLEX SC RECEPTACLE PIN SIGNAL DETECT OUT QUANTIZER IC PREAMP IC OPTICAL SUBASSEMBLIES DATA IN DRIVER IC Figure 1. Block Diagram. LED TOP VIEW Transmitter Sections The transmitter section of the AFBR-5302Z utilizes 1300 nm InGaAsP LEDs. These LEDs are packaged in the optical subassembly portion of the transmitter section. They are driven by a custom silicon IC which converts PECL logic signals, into an analog LED drive current.
