Datasheet Details
| Part number | AFBR-8CER01Z |
|---|---|
| Manufacturer | Avago Technologies (now Broadcom) |
| File Size | 792.40 KB |
| Description | 25G Ethernet SFP28 Active Optical Cable |
| Datasheet |

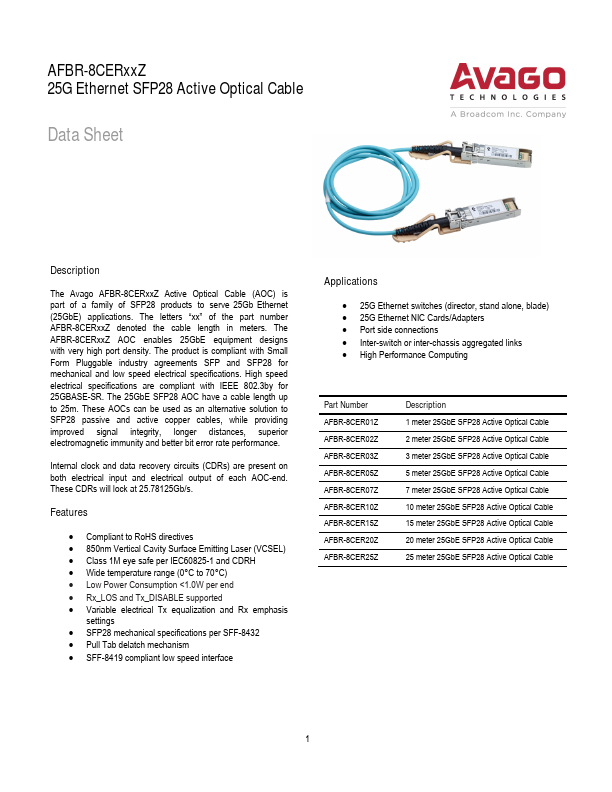

 AFBR-8CER01Z Datasheet
|
|
|
General Description
The Avago AFBR-8CERxxZ Active Optical Cable (AOC) is part of a family of SFP28 products to serve 25Gb Ethernet (25GbE) applications.
The letters “xx” of the part number AFBR-8CERxxZ denoted the cable length in meters.
The AFBR-8CERxxZ AOC enables 25GbE equipment designs with very high port density.
Key Features
- Compliant to RoHS directives.
- 850nm Vertical Cavity Surface Emitting Laser (VCSEL).
- Class 1M eye safe per IEC60825-1 and CDRH.
- Wide temperature range (0°C to 70°C).
- Low Power Consumption.
