HCPL-0302 - (HCPL-3020 / HCPL-0302) 0.4 Amp Output Current IGBT Gate Drive Optocoupler

Download the HCPL-0302 datasheet PDF. This datasheet also covers the HCPL-3020 variant, as both devices belong to the same (hcpl-3020 / hcpl-0302) 0.4 amp output current igbt gate drive optocoupler family and are provided as variant models within a single manufacturer datasheet.

General Description

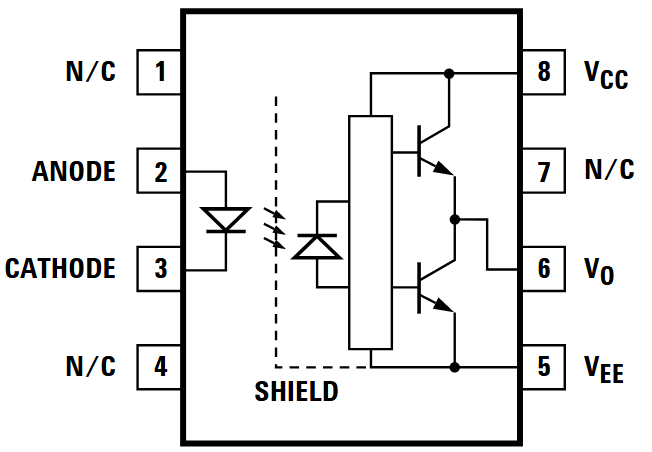

The HCPL-3020 and HCPL-0302 consist of a GaAsP LED optically coupled to an integrated circuit with a power output stage.

These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.

Key Features

  •   0.4 A maximum peak output current.
  •   0.2 A minimum peak output current.
  •   High speed response: 0.7 µs maximum propagation delay over temperature range.
  •   Ultra high CMR: minimum 10 kV/µs at VCM = 1000 V.
  •   Bootstrappable supply current: maximum 3 mA.
  •   Wide operating temperature range:.
  • 40°C to 100°C.
  •   Wide VCC operating range: 10 V to 30 V over temperature range.
  •   Available in DIP 8 and SO-8 packages.
  •   Safety.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HCPL-3020-Avago.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
HCPL-0300 8 MBd Low Input Current Optocoupler Agilent
HCPL-0300 8 MBd Low Input Current Optocoupler AVAGO TECHNOLOGIES
HCPL-0314 0.4 Amp Output Current IGBT Gate Drive Optocoupler Agilent
HCPL-0370 AC/DC to Logic Interface Optocouplers Agilent
HCPL-0201 Very High CMR / Wide VCC Logic Gate Optocouplers Hewlett-Packard

Other Datasheets by Avago Technologies (now Broadcom)

Part Number Description
HCPL-0314 0.4 Amp Output Current IGBT Gate Drive Optocoupler
HCPL-0370 Isolated Voltage/Current Detectors
HCPL-0201 Logic Gate Optocouplers
HCPL-0211 Logic Gate Optocouplers
HCPL-0452 High Speed Optocouplers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
HCPL-3020/HCPL-0302 0.4 Amp Output Current IGBT Gate Drive Optocoupler Data Sheet Description The HCPL-3020 and HCPL-0302 consist of a GaAsP LED optically coupled to an integrated circuit with a power output stage. These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications. The high operating voltage range of the output stage provides the drive voltages required by gate-controlled devices. The voltage and current supplied by this optocoupler makes it ideally suited for directly driving small or medium power IGBTs. For IGBTs with higher ratings, the HCPL-0314/3140 (0.6 A), HCPL‑3150 (0.6 A) or HCPL-3120 (2.5 A) gate drive opto-couplers can be used. Features •  0.4 A maximum peak output current •  0.
