Datasheet Details
| Part number | HCPL-3020 |
|---|---|
| Manufacturer | Avago Technologies (now Broadcom) |
| File Size | 202.16 KB |
| Description | (HCPL-3020 / HCPL-0302) 0.4 Amp Output Current IGBT Gate Drive Optocoupler |
| Datasheet |
 HCPL-3020 Datasheet
|
|
|
General Description

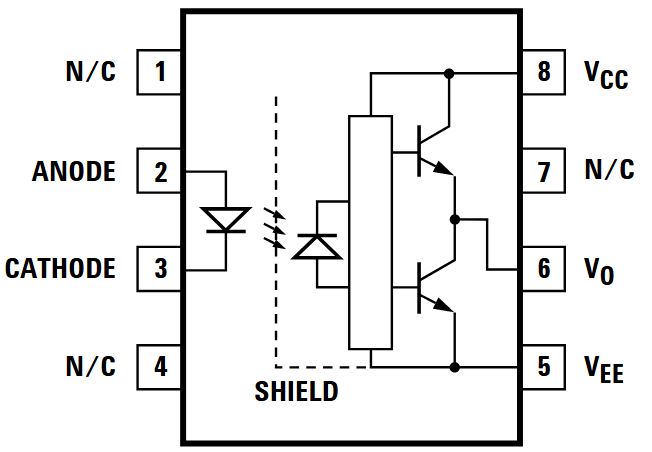

The HCPL-3020 and HCPL-0302 consist of a GaAsP LED optically coupled to an integrated circuit with a power output stage.
These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.
Key Features
- 0.4 A maximum peak output current.
- 0.2 A minimum peak output current.
- High speed response: 0.7 µs maximum propagation delay over temperature range.
- Ultra high CMR: minimum 10 kV/µs at VCM = 1000 V.
- Bootstrappable supply current: maximum 3 mA.
- Wide operating temperature range:.
- 40°C to 100°C.
- Wide VCC operating range: 10 V to 30 V over temperature range.
- Available in DIP 8 and SO-8 packages.
- Safety.
