HCPL-3120 Datasheet 2.5 Amp Output Current IGBT Gate Drive Optocoupler

Manufacturer: Avago Technologies (now Broadcom)

Overview: HCPL-3120/J312, HCNW3120 2.5 Amp Output Current IGBT Gate Drive Optocoupler Data.

Datasheet Details

Part number	HCPL-3120
Manufacturer	Avago Technologies (now Broadcom)
File Size	1.00 MB
Description	2.5 Amp Output Current IGBT Gate Drive Optocoupler
Datasheet	HCPL-3120-Avago.pdf

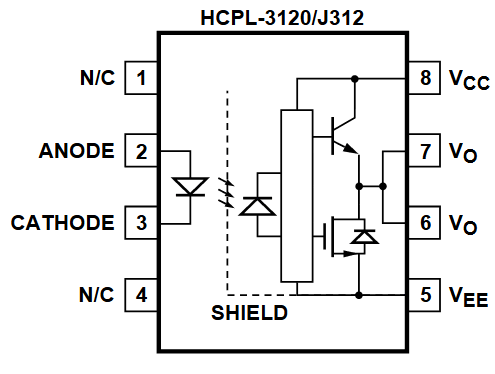

The HCPL-3120 contains a GaAsP LED while the HCPL-J312 and the HCNW3120 contain an AlGaAs LED.

The LED is optically coupled to an integrated circuit with a power output stage.

These optocouplers are ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications.

2.5 A maximum peak output current.
2.0 A minimum peak output current.
25 kV/μs minimum Common Mode Rejection (CMR) at VCM = 1500 V.
0.5 V maximum low level output voltage (VOL) Eliminates need for negative gate drive.
ICC = 5 mA maximum supply current.
Under Voltage Lock-Out protection (UVLO) with hysteresis.
Wide operating VCC range: 15 to 30 Volts.
500 ns maximum switching speeds.
Industrial temperature range:.
40 °C to 100 °C.
Safety.
