HEDL-5505 - Encoder Line Drivers

Download the HEDL-5505 datasheet PDF. This datasheet also covers the HEDL-5500 variant, as both devices belong to the same encoder line drivers family and are provided as variant models within a single manufacturer datasheet.

General Description

Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/9140 series encoders.

The line driver offers enhanced perform­ance when the encoder is used in noisy environments, or when it is required to drive long distances.

Key Features

  • Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series).
  • Complementary Outputs.
  • Industry Standard Line Driver IC.
  • Single 5 V Supply.
  • Onboard Bypass Capacitor Note: Avago Technologies encoders are not recommended for use in safety critical.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HEDL-5500-Avago.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number HEDL-5505
Manufacturer Avago
File Size 107.52 KB
Description Encoder Line Drivers
Datasheet download datasheet HEDL-5505 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HEDL-5505 Encoder Line Drivers Hewlett-Packard
HEDL-5500 Encoder Line Drivers Hewlett-Packard
HEDL-5540 Encoder Line Drivers Hewlett-Packard
HEDL-554x (HEDL-5xxx / HEDL-9xxx) Encoder Line Drivers Hewlett-Packard
HEDL-5600 Encoder Line Drivers Hewlett-Packard

Other Datasheets by Avago

Part Number Description
HEDL-5500 Encoder Line Drivers
HEDL-5540 Encoder Line Drivers
HEDL-5600 Encoder Line Drivers
HEDL-5605 Encoder Line Drivers
HEDL-5640 Encoder Line Drivers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

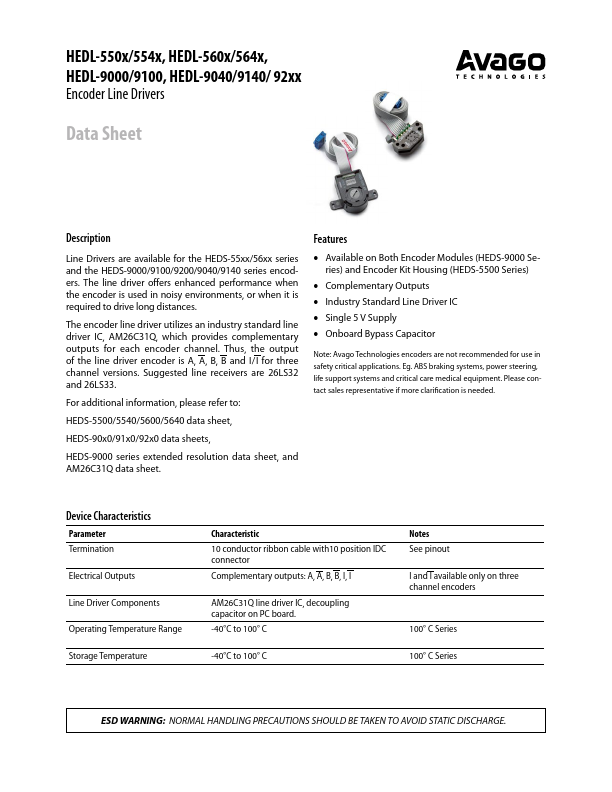

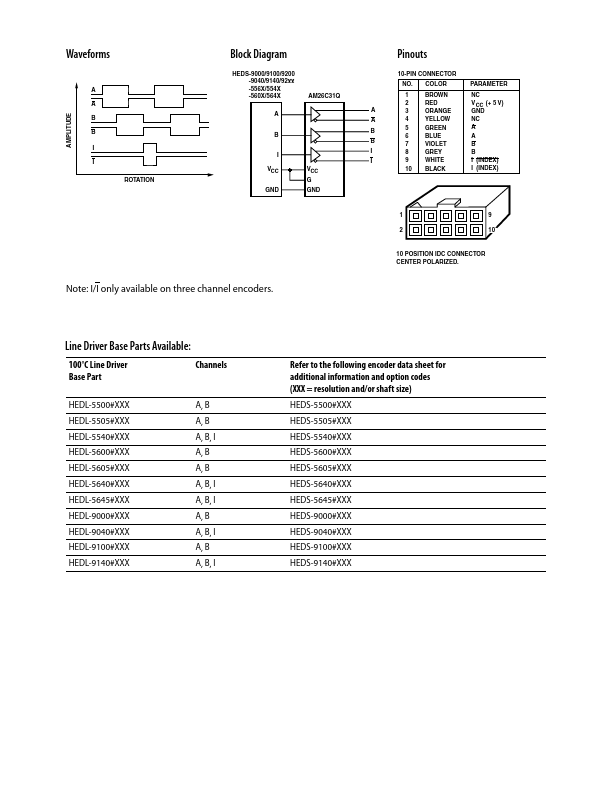

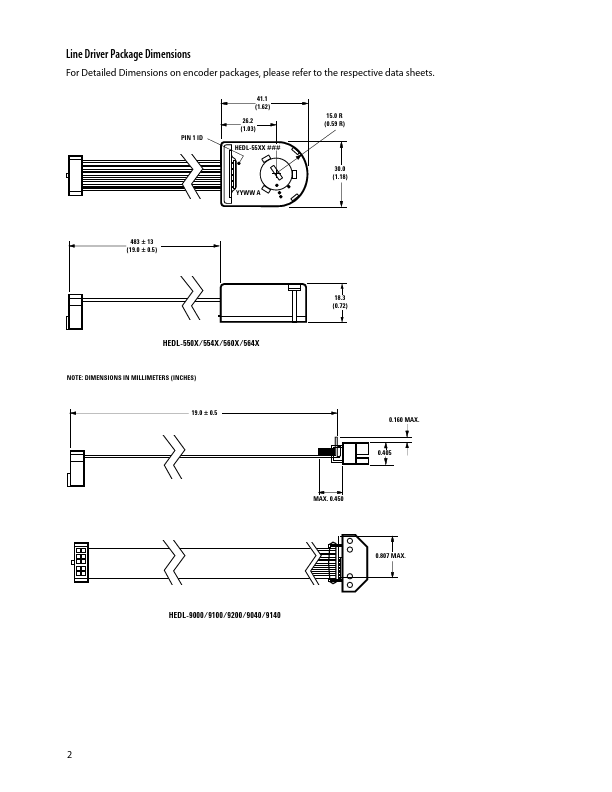

HEDL-550x/554x, HEDL-560x/564x, HEDL-9000/9100, HEDL-9040/9140/ 92xx Encoder Line Drivers Data Sheet Description Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/9140 series encoders. The line driver offers enhanced perform­ance when the encoder is used in noisy environments, or when it is required to drive long distances. The encoder line driver utilizes an industry standard line driver IC, AM26C31Q, which pro­vides comple­men­t­ary outputs for each encoder channel. Thus, the output of the line driver encoder is A, A, B, B and I/I for three channel versions. Suggested line receivers are 26LS32 and 26LS33.
