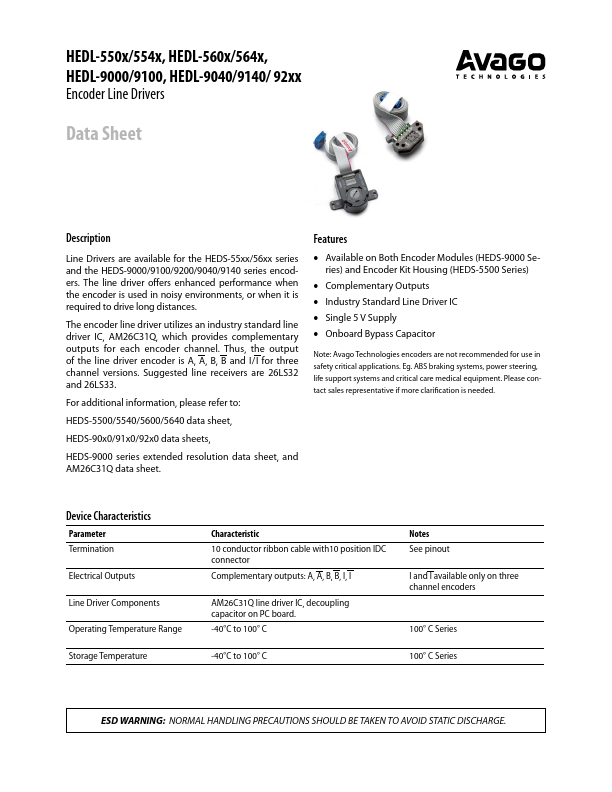

HEDL-550x/554x, HEDL-560x/564x, HEDL-9000/9100, HEDL-9040/9140/ 92xx Encoder Line Drivers Data Sheet Description Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/9140 series encoders. The line driver offers enhanced perform­ance when the encoder is used in noisy environments, or when it is required to drive long distances. The encoder line driver utilizes an industry standard line driver IC, AM26C31Q, which pro­vides ple­men­t­ary outputs for each encoder channel. Thus, the output of the line driver encoder is A, A, B, B and I/I for three channel versions. Suggested line receivers are 26LS32 and 26LS33. For additional information, please refer to: HEDS-5500/5540/5600/5640 data sheet, HEDS-90x0/91x0/92x0 data sheets, HEDS-9000 series extended resolution data sheet, and AM26C31Q data sheet. Features - Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series) - plementary Outputs - Industry Standard Line Driver IC - Single 5 V Supply - Onboard Bypass Capacitor Note: Avago Technologies encoders are not remended for use in safety critical applications. Eg. ABS braking systems, power steering, life support systems and critical care medical equipment. Please contact sales representative if more clarification is needed. Device Characteristics Parameter Termination Electrical Outputs Line Driver ponents Operating Temperature Range Storage Temperature Characteristic 10 conductor ribbon cable with10 position IDC connector plementary outputs: A, A, B, B, I, I AM26C31Q line driver IC, decoupling capacitor on PC board. -40°C to 100° C -40°C to 100° C Notes See pinout I and I available only on three channel encoders 100° C Series 100° C Series ESD WARNING: NORMAL HANDLING PRECAUTIONS SHOULD BE TAKEN TO AVOID STATIC DISCHARGE. Line Driver Package Dimensions For Detailed Dimensions on encoder packages, please refer to the respective data...
