HEDL-9140 - Encoder Line Drivers

Product Overview

Avago

Part number	HEDL-9140
Manufacturer	Avago
File Size	107.52 KB
Description	Encoder Line Drivers
Datasheet	HEDL-9140 Datasheet
Note	This datasheet PDF includes multiple part numbers: HEDL-9140, HEDL-5500. Please refer to the document for exact specifications by model.

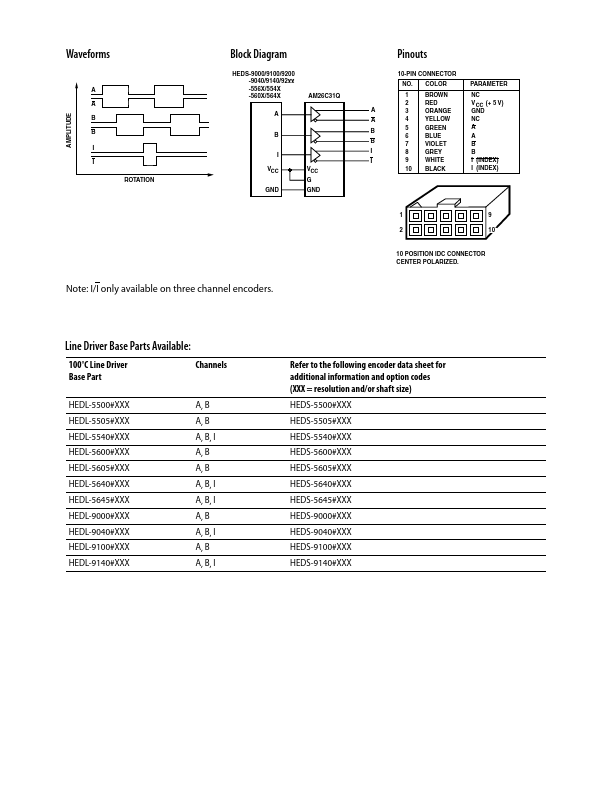

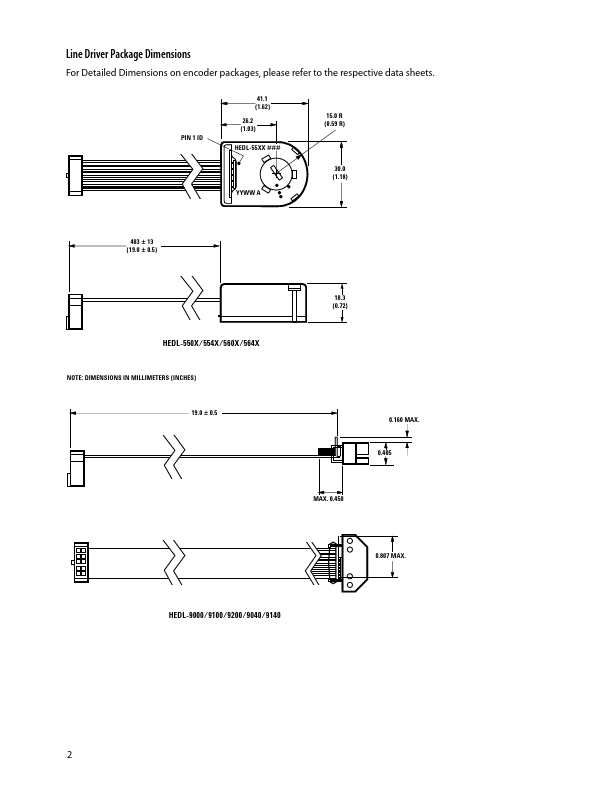

Additional preview pages of the HEDL-9140 datasheet.

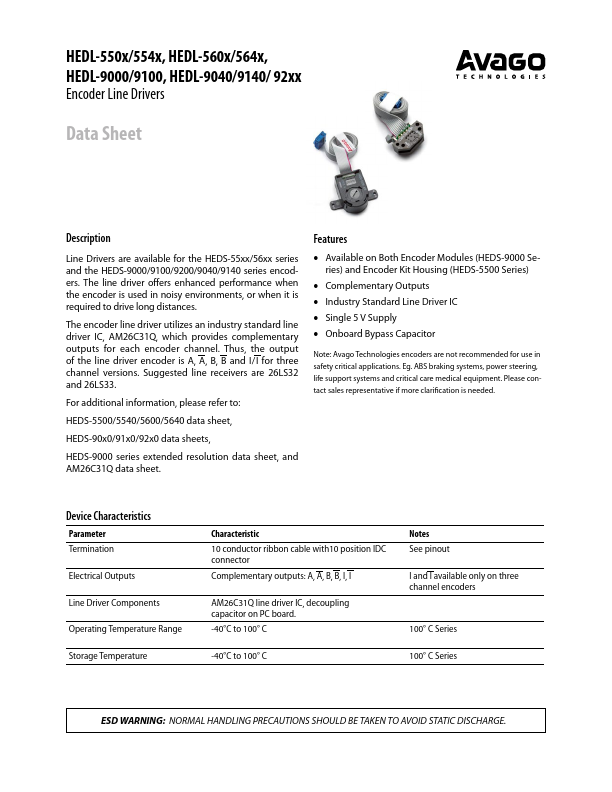

Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/9140 series encoders.

The line driver offers enhanced performance when the encoder is used in noisy environments, or when it is required to drive long distances.

Available on Both Encoder Modules (HEDS-9000 Series) and Encoder Kit Housing (HEDS-5500 Series).
Complementary Outputs.
Industry Standard Line Driver IC.
Single 5 V Supply.
Onboard Bypass Capacitor Note: Avago Technologies encoders are not recommended for use in safety critical.
