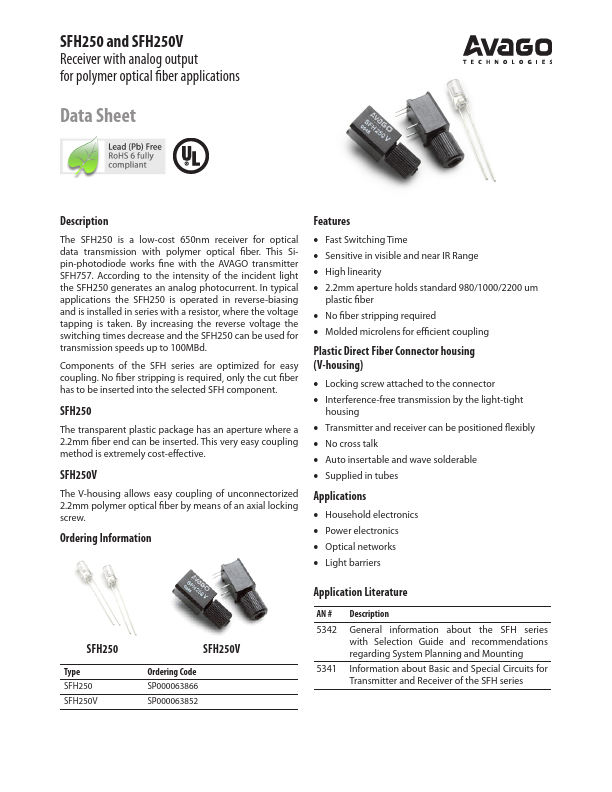

Avago Technologies SFH250
The SFH250 is a low-cost 650nm receiver for optical data transmission with polymer optical fiber. This Sipin-photodiode works fine with the AVAGO transmitter SFH757. By increasing the reverse voltage the switching times decrease and the SFH250 can be used for transmission speeds up to 100MBd.| Part No. | SFH250 |
|---|---|
| Datasheet | SFH250 Download |
| Manufacturer |  Avago Technologies |
| Description | a low-cost 650nm receiver |
| Buy | Stock & Price |
DESCRIPTION
According to the intensity of the incident light the SFH250 generates an analog photocurrent. In typical applications the SFH250 is operated in reverse-biasing and is installed in series with a resistor, where the voltage tapping is taken. Components of the SFH series are optimized for easy coupling. No fiber stripping is required, only the cut fiber has to be inserted into the selected SFH component. SFH250 The transparent plastic package has an aperture where a 2.2mm fiber end can be inserted. This very easy coupling method is extremely cost-effective. SFH250V The V-housing allows easy coupling of unconnectorized 2.2mm polymer optical fiber by means of an axial locking screw. Ordering InformationFEATURES
● Fast Switching Time● Sensitive in visible and near IR Range
● High linearity
● 2.2mm aperture holds standard 980/1000/2200 um plastic fiber
● No fiber stripping required
● Molded microlens for efficient coupling Plastic Direct Fiber Connector housing (V-housing)
● Loc...
