B071FH8F01A0 Overview
5.1 Pin Assignment FPC module 2 BOE 5.2 Pin description of FPC Module PCB module 3 BOE 4 BOE 5.3 Pin description of PCB Module 5 BOE 6 BOE 5.4 Peripheral Circuit Mounting the capacitor for each power supply to ensure that the panel display normally. CVDD CMVDDL CMVDDA VDD VDD Regulator MVDDL MVDDL Regulator MVDDA MVDDA Regulator VDDI AVDD AVDD_DC AVEE CVDDI CAVDD 4.7uF Power IC CAVEE 4.7uF CVGMP VGMP VGMP Regulator...
B071FH8F01A0 Key Features

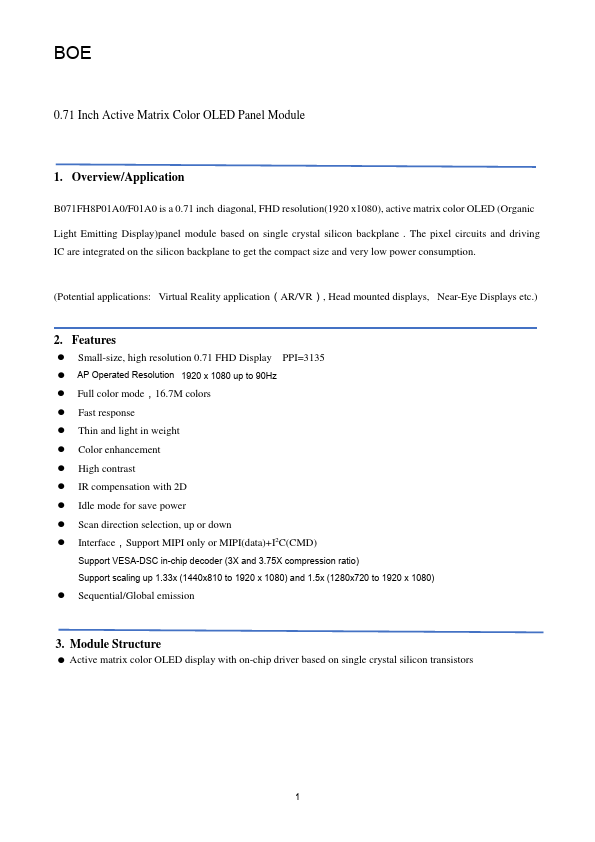

- Small-size, high resolution 0.71 FHD Display PPI=3135
- Full color mode，16.7M colors
- Fast response
- Thin and light in weight
- Color enhancement
- High contrast
- IR pensation with 2D
- Idle mode for save power
- Scan direction selection, up or down
- Interface，Support MIPI only or MIPI(data)+I2C(CMD)
