BO039M1920M
Description
of Function 10.1 Display Mode 10.1.1 Power Mode ITEM Sleep In Sleep Out Display On Display Off Code value 0x10 0x11 0x29 0x28 BOE 10.1.2 Idle Mode ITEM Idle On Idle Off Code value 0x39(Default value) 0x38 10.1.3 BIST Mode Register setting： - BIST On/Off Control (C4h CMD2 Page1) Instruction BISTONOFF Description Restriction Address name Parameter R/W MIPI Other D15D8 D7 D6 D5 D4 D3 D2 D1 C400h - 1 0 1 0 0 1 0 C401h - 0 1 0 1 0 1 0 R/W C4h C402h - - - - - - - - C403h - BION2 - - - - - - This mand is used to control BIST function (Free Run mode). BIST function enable step: 1.

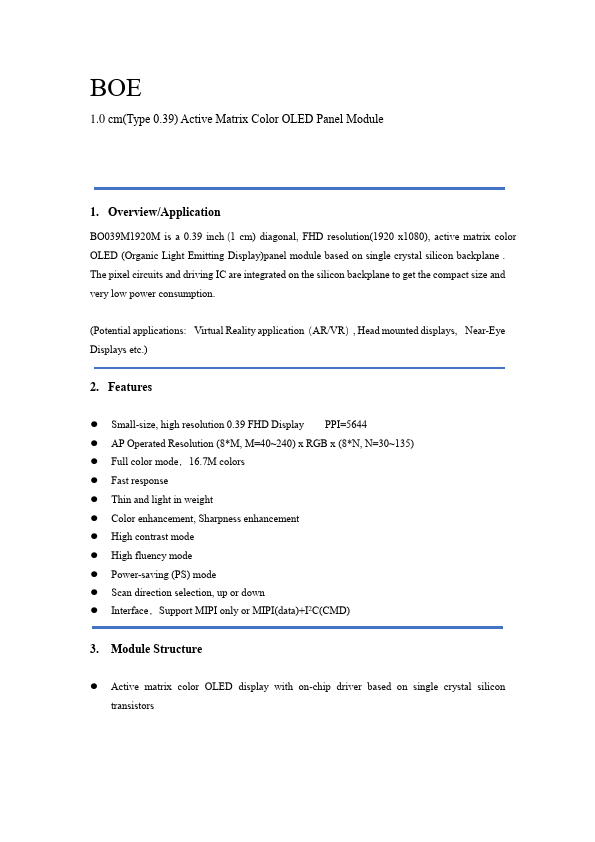

Key Features
- Small-size, high resolution 0.39 FHD Display PPI=5644
- Full color mode，16.7M colors
- Fast response
- Thin and light in weight
- Color enhancement, Sharpness enhancement
- High contrast mode
- High fluency mode
- Power-saving (PS) mode
- Scan direction selection, up or down
- Interface，Support MIPI only or MIPI(data)+I2C(CMD)
