HT140WXB-501 Datasheet Tft Lcd Module

Manufacturer: BOE

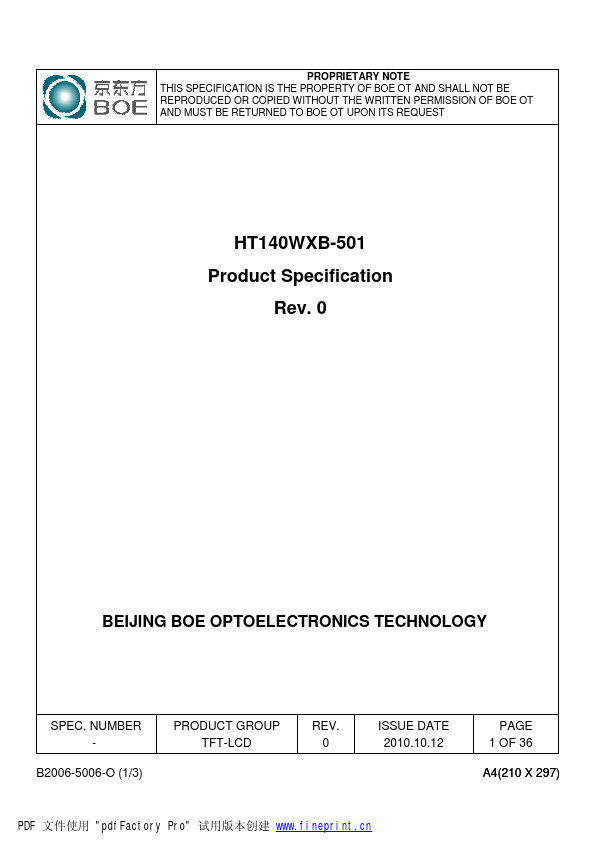

Overview: Global LCD Panel Exchange Center .panelook. PROPRIETARY NOTE THIS SPECIFICATION IS THE PROPERTY OF BOE OT AND SHALL NOT BE REPRODUCED OR COPIED WITHOUT THE WRITTEN PERMISSION OF BOE OT AND MUST BE RETURNED TO BOE OT UPON ITS REQUEST HT140WXB-501 Preliminary Product Specification Rev. P0 BEIJING BOE OPTOELECTRONICS TECHNOLOGY SPEC. NUMBER T B2006-5006-O (1/3) PRODUCT GROUP TFT-LCD REV. P0 ISSUE DATE 2010.7.22 PAGE 1 OF 35 A4(210 X 297) One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory! .panelook. Global LCD Panel Exchange Center .panelook. REV. P0 ECN NO. - PRODUCT GROUP TFT LCD PRODUCT REV P0 ISSUE DATE 2010.7.

Datasheet Details

Part number HT140WXB-501
Manufacturer BOE
File Size 1.19 MB
Description TFT LCD Module
Datasheet HT140WXB-501-BOE.pdf

General Description

OF CHANGES Initial Release DATE 2010.7.22 PREPARED Xue Hailin SPEC.

NUMBER T B2006-5006-O (2/3) SPEC TITLE HT140WXB-501 Product Specification PAGE 2 OF 35 A4(210 X 297) One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!

.panelook.

Key Features

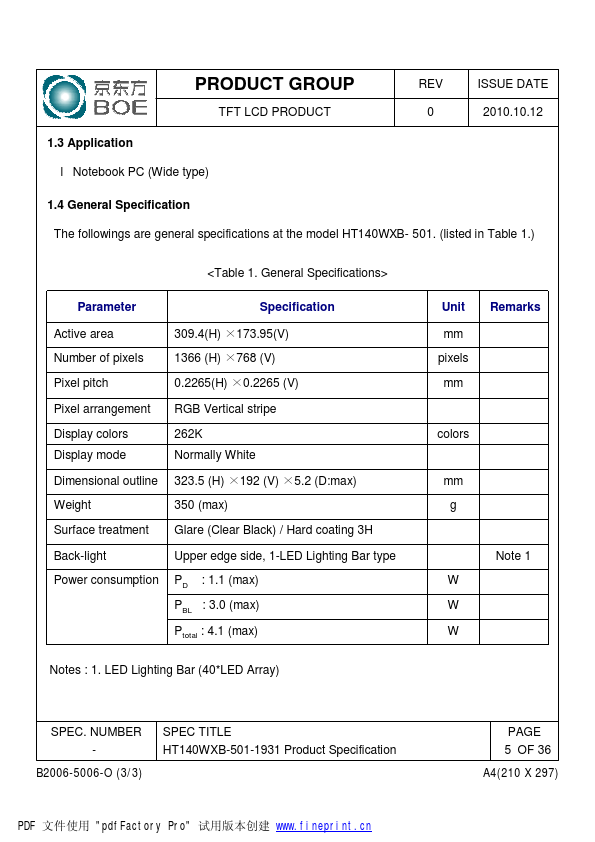

  • z 1 Channel LVDS Interface with 1 pixel / clock z Thin and light weight z 6-bit color depth, display 262K colors z Single LED Lighting Bar. (Top side/Horizontal Direction) z Data enable signal mode z Side Mounting Frame z Green Product (RoHS & Halogen free product) z On board LED Driving circuit z Low driving voltage and low power consumption z On board EDID chip SPEC. NUMBER T B2006-5006-O (3/3) SPEC TITLE HT140WXB-501 Product Specification PAGE 4 OF 35 A4(210 X 297) One step solution for L.
