NV156FHM-T01 Overview

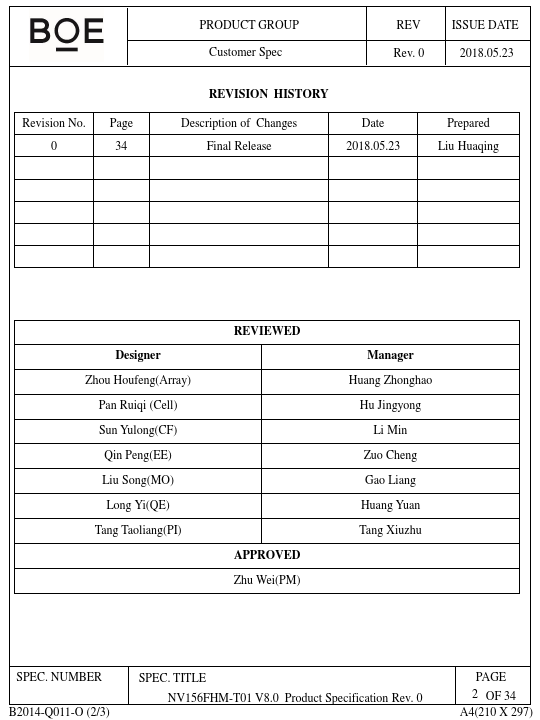

of Changes Final Release Date 2018.05.23 Prepared Liu Huaqing Designer Zhou Houfeng(Array) Pan Ruiqi (Cell) Sun Yulong(CF) Qin Peng(EE) Liu Song(MO) Long Yi(QE) Tang Taoliang(PI) REVIEWED APPROVED Zhu Wei(PM) Manager Huang Zhonghao Hu Jingyong Li Min Zuo Cheng Gao Liang Huang Yuan Tang Xiuzhu SPEC. NUMBER B2014-Q011-O (2/3) SPEC. TITLE NV156FHM-T01 V8.0 Product Specification Rev.
NV156FHM-T01 Key Features
- 2 lane eDP interface with 2.7Gbps link rates
- Thin and light weight
- 262k(6bit) color depth, color gamut 45%
- Single LED lighting bar (Bottom side/Horizontal Direction)
- Data enable signal mode
- Side mounting frame
- Green product (RoHS & Halogen free product)
- On board LED driving circuit
- Low driving voltage and low power consumpt
