TV123WAM-ND0 Overview
PAGE 4 OF 32 1.1 Introduction 12.3 ‘s TFT LCD module uses amorphous silicon TFT‘s (Thin Film Transistors) as an actives witching devices. This module has a 12.3 inch diagonally measured active area with WUXGA+ resolutions (1920 horizontal by 1280 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical Stripe.
TV123WAM-ND0 Key Features
- 2‐in‐1Business Tablet
- Thin and light weight--156g Max;1.96mm Max
- High color gamut--sRGB100% coverage
- Green Product (RoHS & Halogen free product)
- On board LED Driving circuit

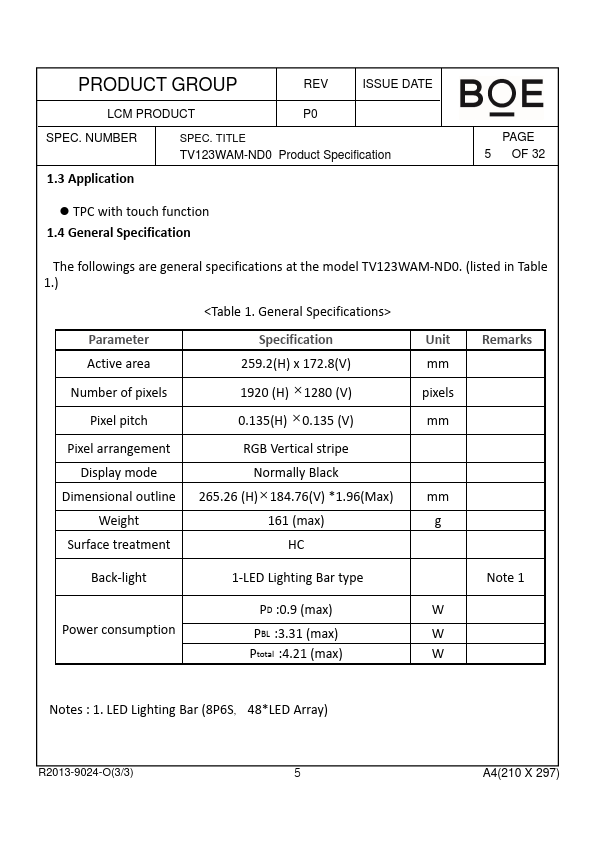

- TPC with touch function 1.4 General Specification
