BP2958X datasheet by BPS.
| Part number | BP2958X |
|---|---|
| Datasheet | BP2958X-BPS.pdf |
| File Size | 416.99 KB |
| Manufacturer | BPS |
| Description | PWM dimming non-isolated buck LED constant current driver |
|
|

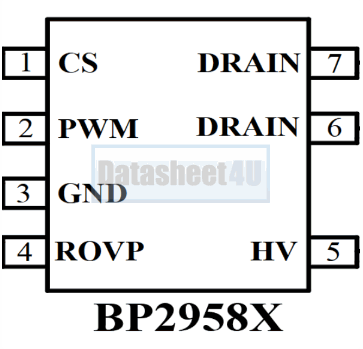

1 BPS Confidential Customer Use Only 定购信息 定购型号 BP2958X BP2958X PWM 调光非隔离降压型 LED 恒流驱动芯片 封装 DIP7 温度范围 -40 ℃到 105 ℃ 包装形式 管装 50 颗/管 打印 BP2958 XXXXXXY FGXXWWX BP2958 XXXXXXY FGXXWWX 管脚封装 CS PWM GND ROVP DRAIN DRAIN HV XXXXXXY: 标示 WW：周号 X:MOS 型号 管脚描述 管脚号 1 2 3 4 5 6,7 图 2 管脚封装图 管脚名称 CS PWM GND ROVP HV DRAIN 描述 电流采样端，采样电阻接在 CS 和 GND 端之间 PWM 调光信号输入端 芯片地 开路保护电压调节端，接电阻到地。电阻越大，OVP 电压越高 芯片高压供电端 内部高压功率管漏极 BP2958X_CN_DS_Rev.1.1...
