BCT0104 - 4-Bit Bidirectional Voltage-Level Translator

Description

This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems.

Features

  • No Direction-Control Signal Needed.
  • Data Rates 24Mbps (Push-Pull) 2Mbps (Open-Drain).
  • 1.65V to 5.5V on A Ports and 2.3V to 5.5V on B Ports (VCCA ≤ VCCB).
  • VCC Isolation: If Either VCC is at GND, Both Ports are in the High-Impedance State.
  • No Power-Supply Sequencing Required, Either VCCA or VCCB can be Ramped First.
  • IOFF: Supports Partial-Power-Down Mode Operation.
  • Available in QFN3.5x3.5-14L, TQFN3x3-16L， FO-12L package.

📥 Download Datasheet

Datasheet Details

Part number BCT0104
Manufacturer BROADCHIP
File Size 1.02 MB
Description 4-Bit Bidirectional Voltage-Level Translator
Datasheet download datasheet BCT0104 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT1117 1A Bipolar Linear Regulator
BCT1117B 0.8A Bipolar Linear Regulator
BCT1812 1.2A 1.5MHz Synchronous Step-Down Converter
BCT1813 2A 1.5MHz Synchronous Step-Down Converter
BCT2014 0.7uA Low Power Linear Regulators

Full PDF Text Transcription

Click to expand full text

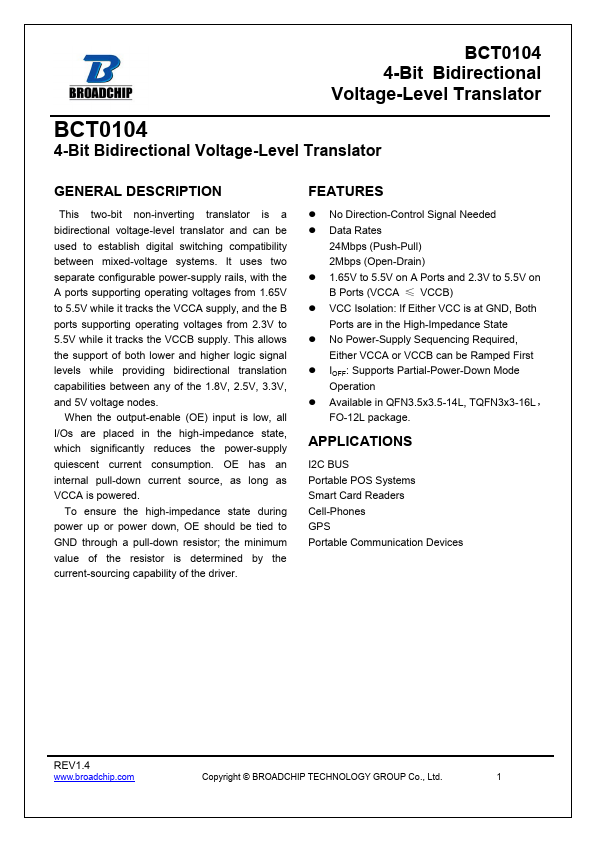

BCT0104 4-Bit Bidirectional Voltage-Level Translator BCT0104 4-Bit Bidirectional Voltage-Level Translator GENERAL DESCRIPTION This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65V to 5.5V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3V to 5.5V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes.
