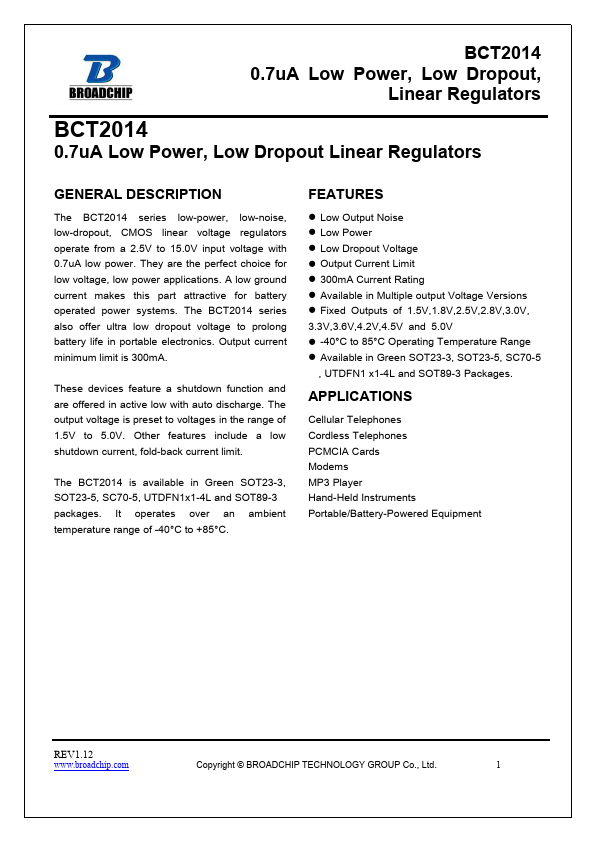

BROADCHIP BCT2014
The BCT2014 series low-power, low-noise, low-dropout, CMOS linear voltage regulators operate from a 2.5V to 15.0V input voltage with 0.7uA low power. They are the perfect choice for low voltage, low power applications. The BCT2014 series also offer ultra low dropout voltage to prolong battery life in portable electronics.| Part No. | BCT2014 |
|---|---|
| Datasheet | BCT2014 Download |
| Manufacturer |  BROADCHIP |
| Description | 0.7uA Low Power Linear Regulators |
| Buy | Stock & Price |
GENERAL DESCRIPTION
A low ground current makes this part attractive for battery operated power systems. Output current minimum limit is 300mA. These devices feature a shutdown function and are offered in active low with auto discharge. The output voltage is preset to voltages in the range of 1.5V to 5.0V. Other features include a low shutdown current, fold-back current limit. The BCT2014 is available in Green SOT23-3, SOT23-5, SC70-5, UTDFN1x1-4L and SOT89-3 packages. It operates over an ambient temperature range of -40°C to +85°C.FEATURES
● Low Output Noise● Low Power
● Low Dropout Voltage
● Output Current Limit
● 300mA Current Rating
● Available in Multiple output Voltage Versions
● Fixed Outputs of 1.5V,1.8V,2.5V,2.8V,3.0V, 3.3V,3.6V,4.2V,4.5V and 5.0V
● -40°C to 85°C Operating Temperature Range
● Available in Green SOT23-3, SOT23-5, SC70-5 , UTDFN1 x1-4L and SOT89-3 Packages.
APPLICATIONS
Cellular Telephones Cordless Telephones PCMCIA Cards Modems MP3 Player Hand-Held Instruments Portable/Battery-Powered Equipment REV1.12 Copyright © BROADCHIP TECHNOLOGY GROUP Co., Ltd.
