BCT2021 - 70dB PSRR 300mA Fast Response Linear Regulators

Description

The BCT2021 series are low power, High PSRR ， Fast Response CMOS linear voltage regulators.

Features

  • an internal soft-start to lower the inrush current which provides a controlled voltage to the load and minimizes the input voltage drop during start up. Other features include a shutdown mode, current limit, Foldback current Limit and thermal shutdown protection. The BCT2021 is available in Green SOT23-3 SOT23-5, SC70-5 and UTDFN1x1-4L packages. It operates over an ambient temperature range of -40°C to +85°C.

📥 Download Datasheet

Datasheet Details

Part number BCT2021
Manufacturer BROADCHIP
File Size 2.04 MB
Description 70dB PSRR 300mA Fast Response Linear Regulators
Datasheet download datasheet BCT2021 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT2028 500mA Linear Regulators
BCT2014 0.7uA Low Power Linear Regulators
BCT2019 RF-Linear Regulators
BCT2031 RF-Linear Regulators
BCT2036 Low Dropout RF-Linear Regulators

Full PDF Text Transcription

Click to expand full text

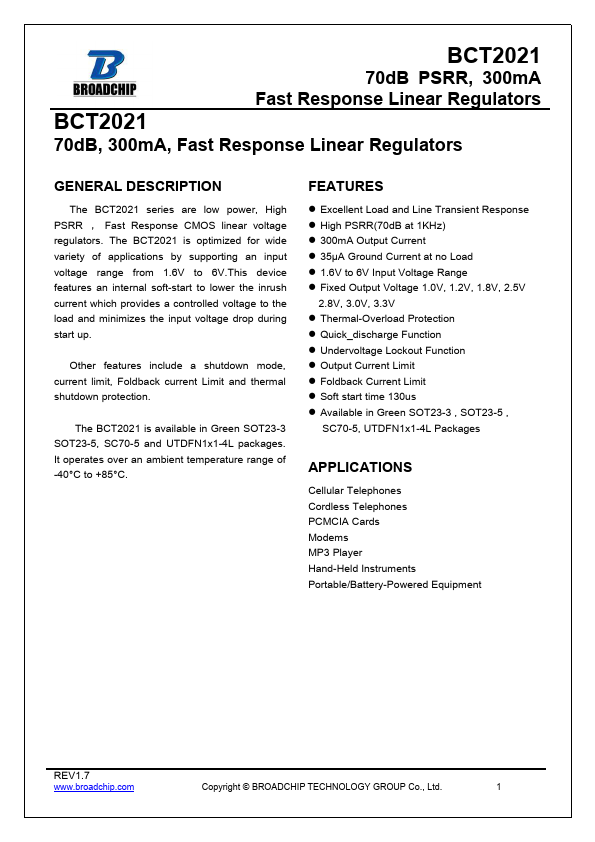

BCT2021 70dB PSRR, 300mA Fast Response Linear Regulators BCT2021 70dB, 300mA, Fast Response Linear Regulators GENERAL DESCRIPTION The BCT2021 series are low power, High PSRR ， Fast Response CMOS linear voltage regulators. The BCT2021 is optimized for wide variety of applications by supporting an input voltage range from 1.6V to 6V.This device features an internal soft-start to lower the inrush current which provides a controlled voltage to the load and minimizes the input voltage drop during start up. Other features include a shutdown mode, current limit, Foldback current Limit and thermal shutdown protection. The BCT2021 is available in Green SOT23-3 SOT23-5, SC70-5 and UTDFN1x1-4L packages. It operates over an ambient temperature range of -40°C to +85°C.
