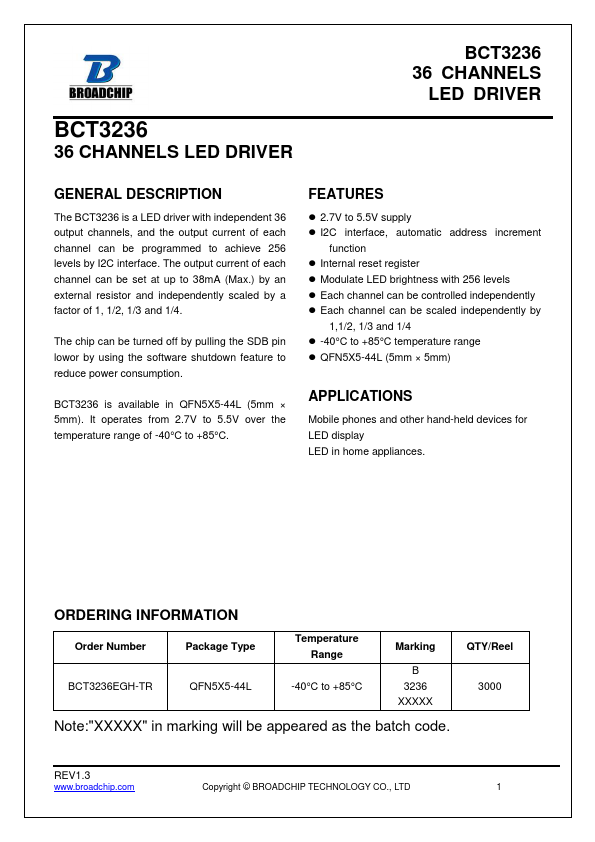

BCT3236 - 36-CHANNELS LED DRIVER

Description

The BCT3236 is a LED driver with independent 36 output channels, and the output current of each channel can be programmed to achieve 256 levels by I2C interface.

Features

  • 2.7V to 5.5V supply.
  • I2C interface, automatic address increment function.
  • Internal reset register.
  • Modulate LED brightness with 256 levels.
  • Each channel can be controlled independently.
  • Each channel can be scaled independently by 1,1/2, 1/3 and 1/4.
  • -40°C to +85°C temperature range.
  • QFN5X5-44L (5mm × 5mm).

📥 Download Datasheet

Datasheet Details

Part number BCT3236
Manufacturer BROADCHIP
File Size 792.93 KB
Description 36-CHANNELS LED DRIVER
Datasheet download datasheet BCT3236 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT3220 4-Channel Common-Anode LED Driver
BCT3221 4-Channel LED Driver
BCT3222 6 Channel LED Driver
BCT3228 8 Channel LED Driver
BCT3253 3ch Current Sink RGB LED driver

Full PDF Text Transcription

Click to expand full text

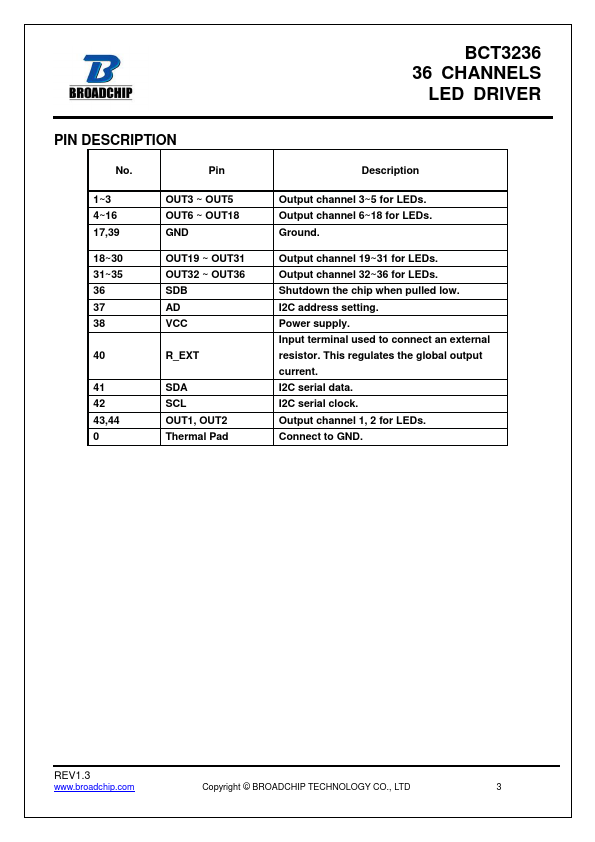

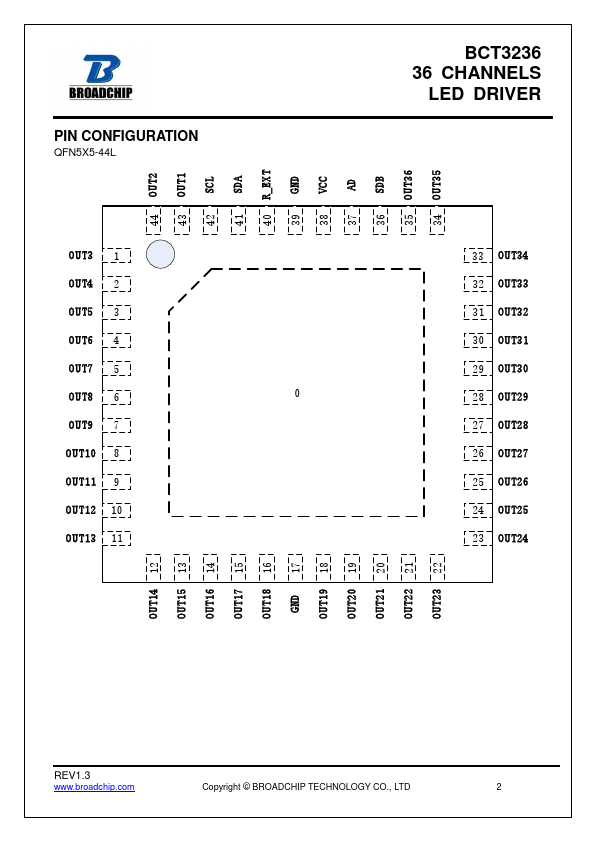

BCT3236 36 CHANNELS LED DRIVER BCT3236 36 CHANNELS LED DRIVER GENERAL DESCRIPTION The BCT3236 is a LED driver with independent 36 output channels, and the output current of each channel can be programmed to achieve 256 levels by I2C interface. The output current of each channel can be set at up to 38mA (Max.) by an external resistor and independently scaled by a factor of 1, 1/2, 1/3 and 1/4. The chip can be turned off by pulling the SDB pin lowor by using the software shutdown feature to reduce power consumption. BCT3236 is available in QFN5X5-44L (5mm × 5mm). It operates from 2.7V to 5.5V over the temperature range of -40°C to +85°C. FEATURES  2.7V to 5.
