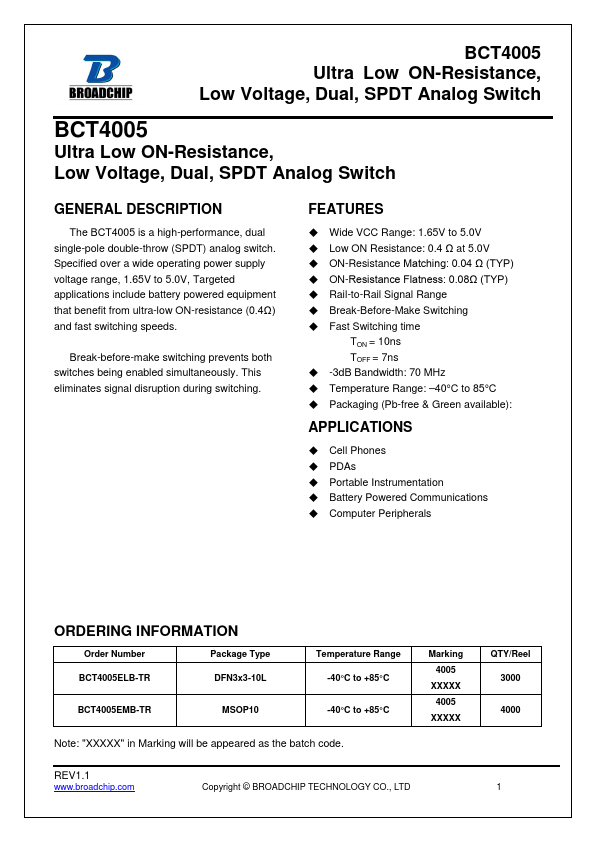

BCT4005 - Ultra Low ON-Resistance Low Voltage Dual SPDT Analog Switch

Description

The BCT4005 is a high-performance, dual single-pole double-throw (SPDT) analog switch.

Specified over a wide operating power supply voltage range, 1.65V to 5.0V, Targeted applications include battery powered equipment that benefit from ultra-low ON-resistance (0.4Ω) and fast switching speeds.

Features

  • Wide VCC Range: 1.65V to 5.0V.
  • Low ON Resistance: 0.4 Ω at 5.0V.
  • ON-Resistance Matching: 0.04 Ω (TYP).
  • ON-Resistance Flatness: 0.08Ω (TYP).
  • Rail-to-Rail Signal Range.
  • Break-Before-Make Switching.
  • Fast Switching time TON = 10ns TOFF = 7ns.
  • -3dB Bandwidth: 70 MHz.
  • Temperature Range:.
  • 40°C to 85°C.
  • Packaging (Pb-free & Green available):.

📥 Download Datasheet

Datasheet Details

Part number BCT4005
Manufacturer BROADCHIP
File Size 276.23 KB
Description Ultra Low ON-Resistance Low Voltage Dual SPDT Analog Switch
Datasheet download datasheet BCT4005 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT4157 Low-Voltage SPDT Analog Switch
BCT4221 USB2.0 Hi-Speed Switches
BCT4222A High-Speed DPDT Analog Switch
BCT4222B 350MHz DPDT Analog Switch
BCT4222C High-Speed DPDT Analog Switch

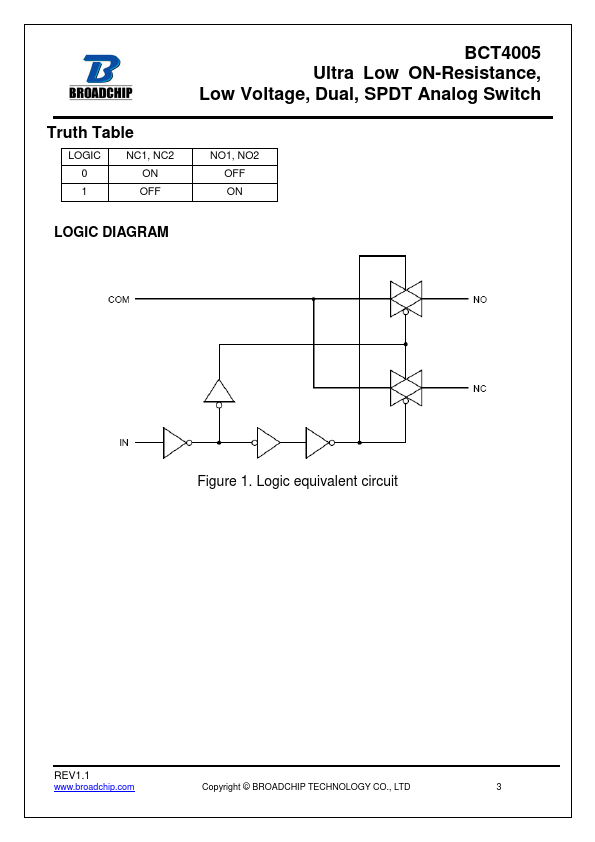

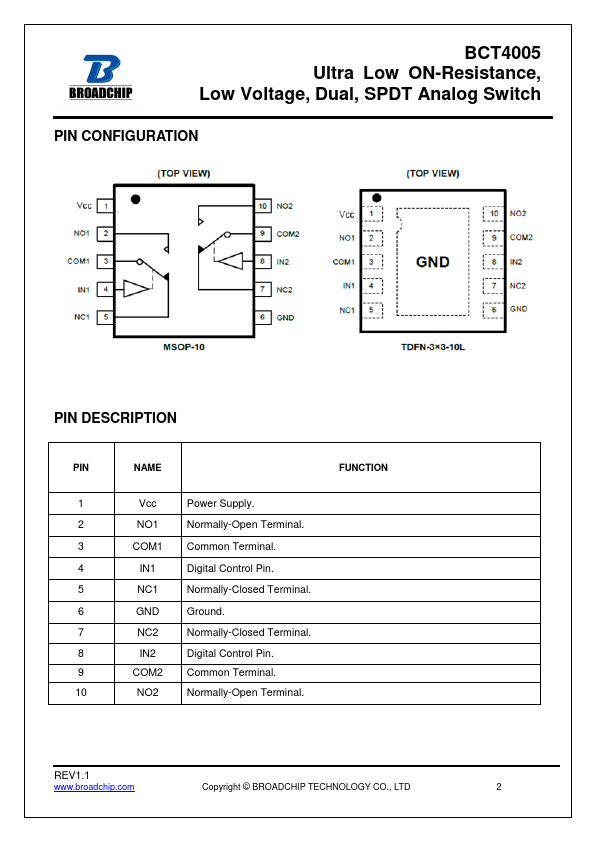

Full PDF Text Transcription

Click to expand full text
BCT4005 Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch BCT4005 Ultra Low ON-Resistance, Low Voltage, Dual, SPDT Analog Switch GENERAL DESCRIPTION The BCT4005 is a high-performance, dual single-pole double-throw (SPDT) analog switch. Specified over a wide operating power supply voltage range, 1.65V to 5.0V, Targeted applications include battery powered equipment that benefit from ultra-low ON-resistance (0.4Ω) and fast switching speeds. Break-before-make switching prevents both switches being enabled simultaneously. This eliminates signal disruption during switching. FEATURES  Wide VCC Range: 1.65V to 5.0V  Low ON Resistance: 0.4 Ω at 5.0V  ON-Resistance Matching: 0.04 Ω (TYP)  ON-Resistance Flatness: 0.
