BCT4157 - Low-Voltage SPDT Analog Switch

BROADCHIP

General Description

The BCT4157 is a high-bandwidth, fast single-pole double-throw (SPDT) CMOS switch.

It can be used as an analog switch or as a low-delay bus switch.

Specified over a wide operating power supply voltage range, 1.65V to 5.5V, the BCT4157 has a maximum ON resistance of 9.0-ohms at 2.7V, & 4.5-ohms at 4.

Key Features

CMOS Technology for Bus and Analog.

📥 Download Datasheet

BCT4157 low-voltage spdt analog switch by BROADCHIP - Datasheet Preview

Datasheet Details

Part number	BCT4157
Manufacturer	BROADCHIP
File Size	1.03 MB
Description	Low-Voltage SPDT Analog Switch
Datasheet	BCT4157 Datasheet

Other Datasheets by BROADCHIP

Part Number	Description
BCT4005	Ultra Low ON-Resistance Low Voltage Dual SPDT Analog Switch
BCT4221	USB2.0 Hi-Speed Switches
BCT4222A	High-Speed DPDT Analog Switch
BCT4222B	350MHz DPDT Analog Switch
BCT4222C	High-Speed DPDT Analog Switch
BCT4223	Dual-SPDT Analog Switch
BCT4224	USB2.0 High-Speed 4:1 Mux/DeMux Switch
BCT4227	High-Speed DPDT Analog Switch
BCT4257	SPDT Analog Switch
BCT4302B	Dual SIM Card Controller

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

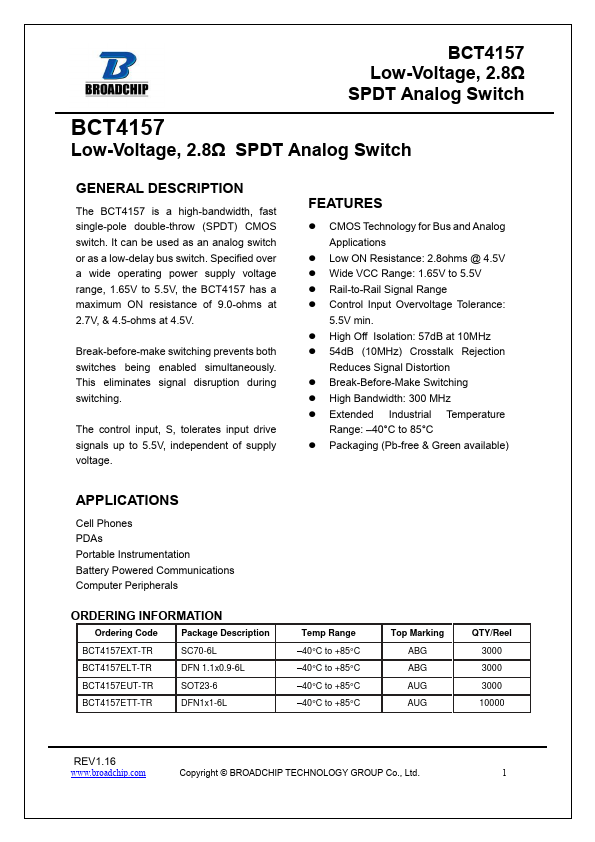

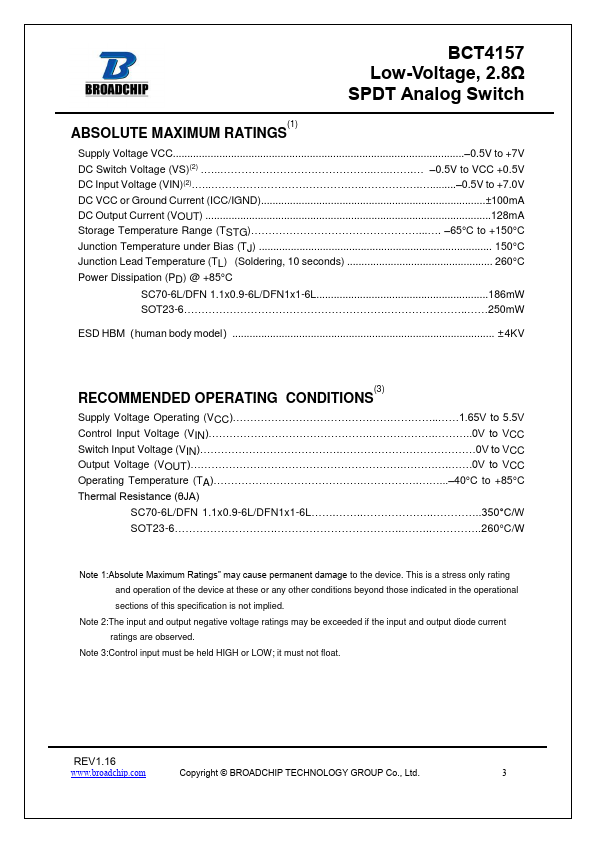

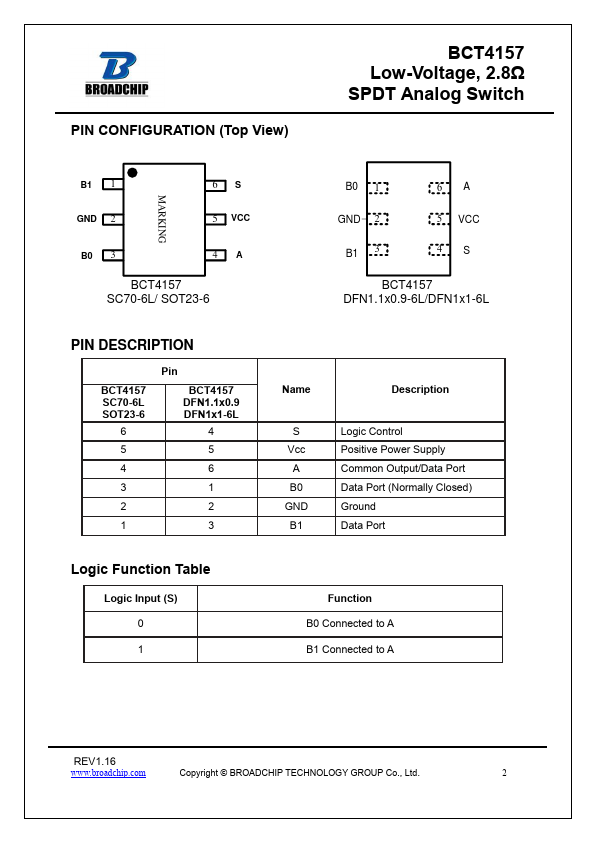

BCT4157 Low-Voltage, 2.8Ω SPDT Analog Switch BCT4157 Low-Voltage, 2.8Ω SPDT Analog Switch GENERAL DESCRIPTION The BCT4157 is a high-bandwidth, fast single-pole double-throw (SPDT) CMOS switch. It can be used as an analog switch or as a low-delay bus switch. Specified over a wide operating power supply voltage range, 1.65V to 5.5V, the BCT4157 has a maximum ON resistance of 9.0-ohms at 2.7V, & 4.5-ohms at 4.5V. Break-before-make switching prevents both switches being enabled simultaneously. This eliminates signal disruption during switching. The control input, S, tolerates input drive signals up to 5.5V, independent of supply voltage. FEATURES  CMOS Technology for Bus and Analog Applications  Low ON Resistance: 2.8ohms @ 4.5V  Wide VCC Range: 1.65V to 5.
