BCT4340 - USB 3.1 SuperSpeed 10 Gbps Switch

Description

The BCT4340 is a 2:1 data switch for USB SuperSpeed Gen1 and Gen2, 5 Gbps and 10 Gbps data.

It is targeted at the mobile device market and for use in Type-C applications where a reversible cable requires a switch.

Features

  • 10 GHz Typical Bandwidth.
  • USB 3.1 SuperSpeed 5 Gbps and10 Gbps Switch.
  • -1.0dB Typical Insertion Loss at 2.5 GHz.
  • Low Active Power of 12μA Typical.
  • Low Shutdown Power of < 1μA Max.
  • 2kV HBM ESD Protection.
  • QFN2.0x2.8-18L Small Package.
  • Wide VCC Operating Range, 1.5V-5.0V.

📥 Download Datasheet

Datasheet Details

Part number BCT4340
Manufacturer BROADCHIP
File Size 856.61 KB
Description USB 3.1 SuperSpeed 10 Gbps Switch
Datasheet download datasheet BCT4340 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT4302B Dual SIM Card Controller
BCT4321N USB2.0 Hi-Speed and Audio Switches
BCT4005 Ultra Low ON-Resistance Low Voltage Dual SPDT Analog Switch
BCT4157 Low-Voltage SPDT Analog Switch
BCT4221 USB2.0 Hi-Speed Switches

Full PDF Text Transcription

Click to expand full text

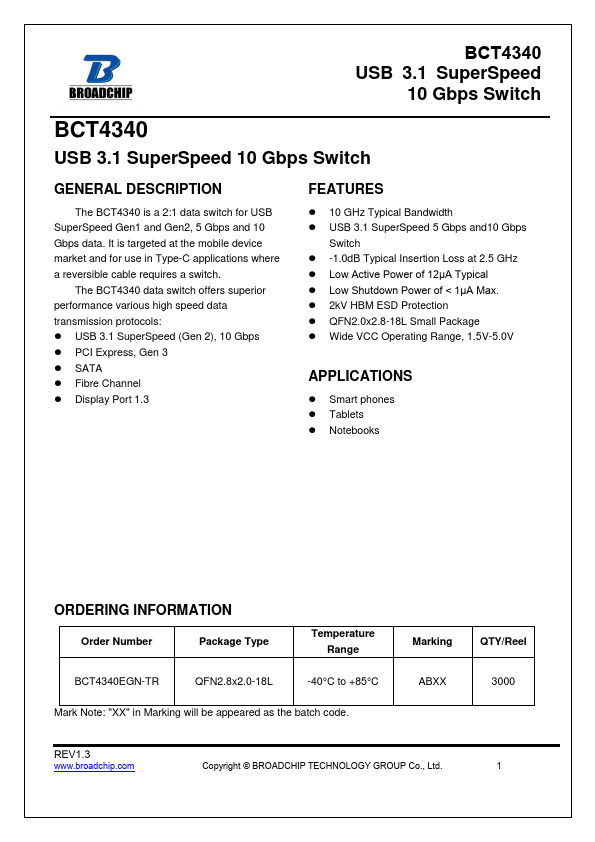

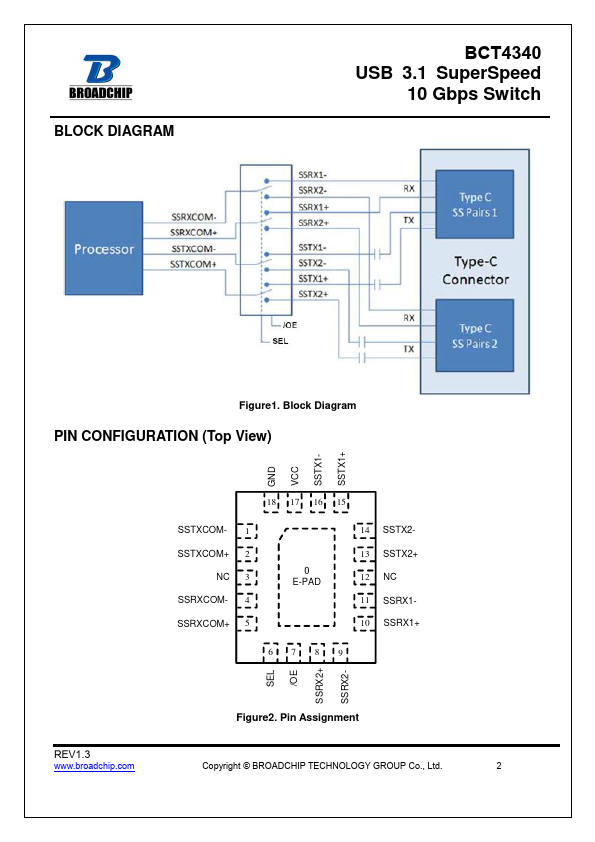

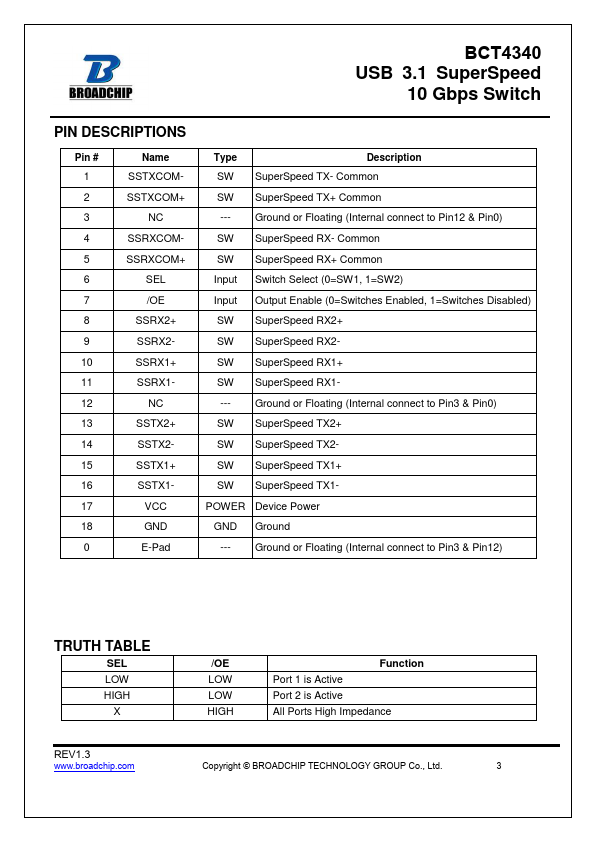

BCT4340 USB 3.1 SuperSpeed 10 Gbps Switch BCT4340 USB 3.1 SuperSpeed 10 Gbps Switch GENERAL DESCRIPTION The BCT4340 is a 2:1 data switch for USB SuperSpeed Gen1 and Gen2, 5 Gbps and 10 Gbps data. It is targeted at the mobile device market and for use in Type-C applications where a reversible cable requires a switch. The BCT4340 data switch offers superior performance various high speed data transmission protocols:  USB 3.1 SuperSpeed (Gen 2), 10 Gbps  PCI Express, Gen 3  SATA  Fibre Channel  Display Port 1.3 FEATURES  10 GHz Typical Bandwidth  USB 3.1 SuperSpeed 5 Gbps and10 Gbps Switch  -1.0dB Typical Insertion Loss at 2.5 GHz  Low Active Power of 12μA Typical  Low Shutdown Power of < 1μA Max.  2kV HBM ESD Protection  QFN2.0x2.
