BCT4480C - USB Type-C Analog Audio Switch

Description

BCT4480C is a high performance USB Type

C port multimedia switch which supports analog audio headsets.

C port to pass USB2.0 signal, analog audio, sideband us e wires and analog microphone signal.

Features

  • Power Supply: 2.7 V to 5.5 V.
  • USB High Speed (480 Mbps) Switch: SDD21.
  • 3dB bandwidth: 950 MHz 3 Ω RON Typical.
  • Audio Switch Negative Rail Capability:.
  • 3 V to +3 V THD+N =.
  • 110 dB; 1 VRMS, f = 20 Hz ~ 20 kHz, 32 Ω Load 1ΩRON Typical.
  • High Voltage Protection 20 V DC Tolerance on Connector Side Pins Over Voltage Protection: VTH = 5 V (Typ).
  • OMTP and CTIA Pinout Support.
  • Support Audio Sense Path.
  • QFN4x4-32L Package.

📥 Download Datasheet

Datasheet Details

Part number BCT4480C
Manufacturer BROADCHIP
File Size 691.02 KB
Description USB Type-C Analog Audio Switch
Datasheet download datasheet BCT4480C Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT4480 USB Type-C Analog Audio Switch
BCT4481 USB Type-C Analog Audio Switch
BCT4005 Ultra Low ON-Resistance Low Voltage Dual SPDT Analog Switch
BCT4157 Low-Voltage SPDT Analog Switch
BCT4221 USB2.0 Hi-Speed Switches

Full PDF Text Transcription

Click to expand full text

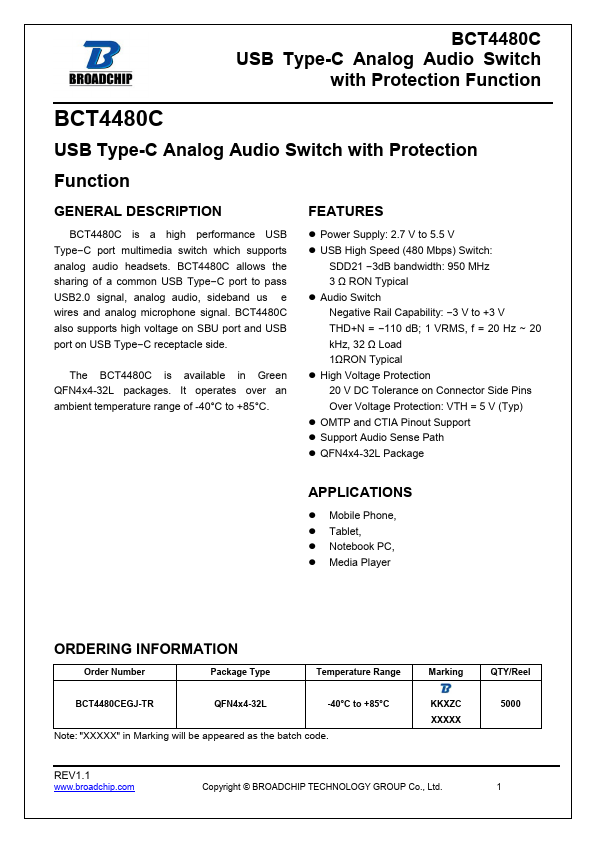

BCT4480C USB Type-C Analog Audio Switch with Protection Function BCT4480C USB Type-C Analog Audio Switch with Protection Function GENERAL DESCRIPTION BCT4480C is a high performance USB Type−C port multimedia switch which supports analog audio headsets. BCT4480C allows the sharing of a common USB Type−C port to pass USB2.0 signal, analog audio, sideband us e wires and analog microphone signal. BCT4480C also supports high voltage on SBU port and USB port on USB Type−C receptacle side. The BCT4480C is available in Green QFN4x4-32L packages. It operates over an ambient temperature range of -40°C to +85°C. FEATURES  Power Supply: 2.7 V to 5.
