BCT4567A - Dual SIM Card Analog Switch

Features

  • The BCT4567A is a QPDT switch with one common control inputs targeted at dual SIM card multiplexing. It is optimized for switching the WLAN-SIM data and control signals and dedicates one channel as a supply-source switch. The BCT4567A is compatible with the requirements of SIM cards and feature a low on capacitance to ensure high speed data transfer, the VSIM switch path has a low RON characteristic to ensure minimal voltage drop in dual SIM card supply paths. The device operates from a +1.65V.

📥 Download Datasheet

Datasheet Details

Part number BCT4567A
Manufacturer BROADCHIP
File Size 964.90 KB
Description Dual SIM Card Analog Switch
Datasheet download datasheet BCT4567A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT4567 Dual SIM Card Analog Switch
BCT4005 Ultra Low ON-Resistance Low Voltage Dual SPDT Analog Switch
BCT4157 Low-Voltage SPDT Analog Switch
BCT4221 USB2.0 Hi-Speed Switches
BCT4222A High-Speed DPDT Analog Switch

Full PDF Text Transcription

Click to expand full text

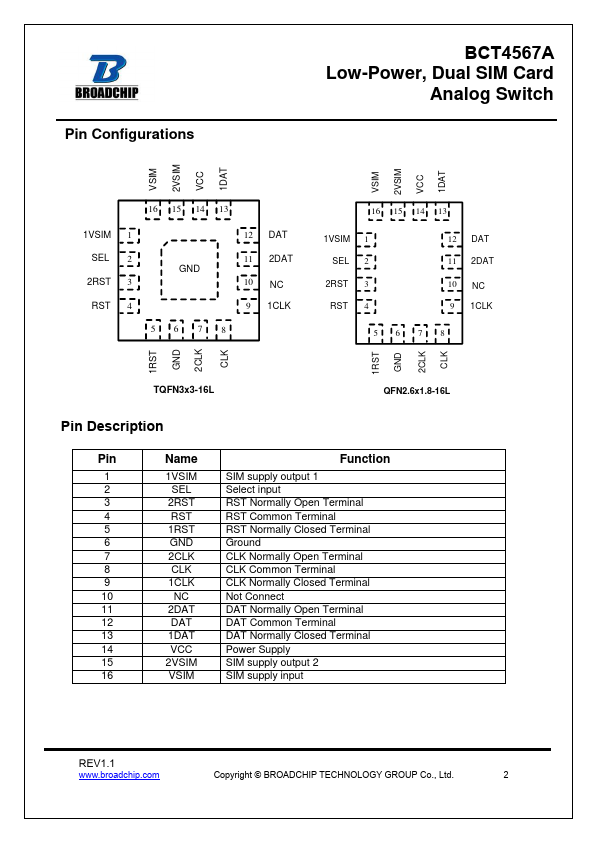

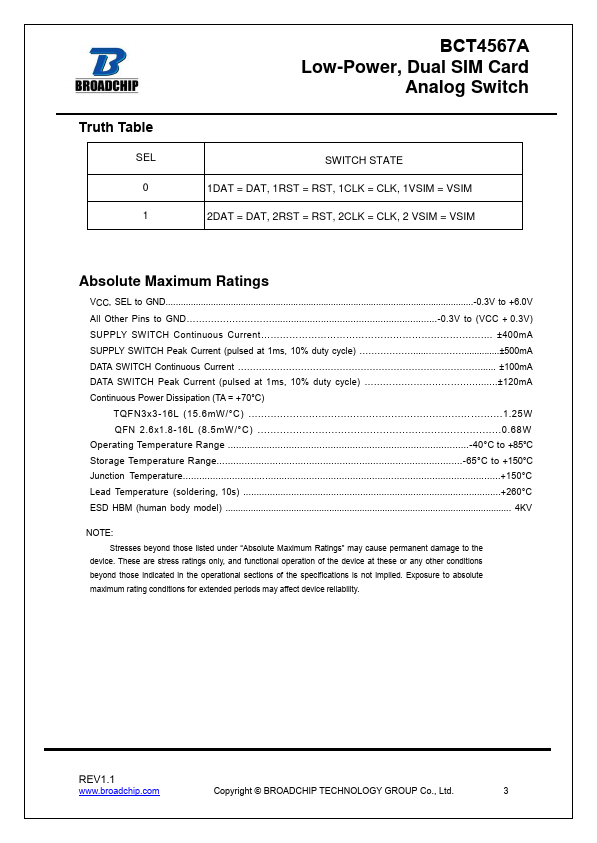

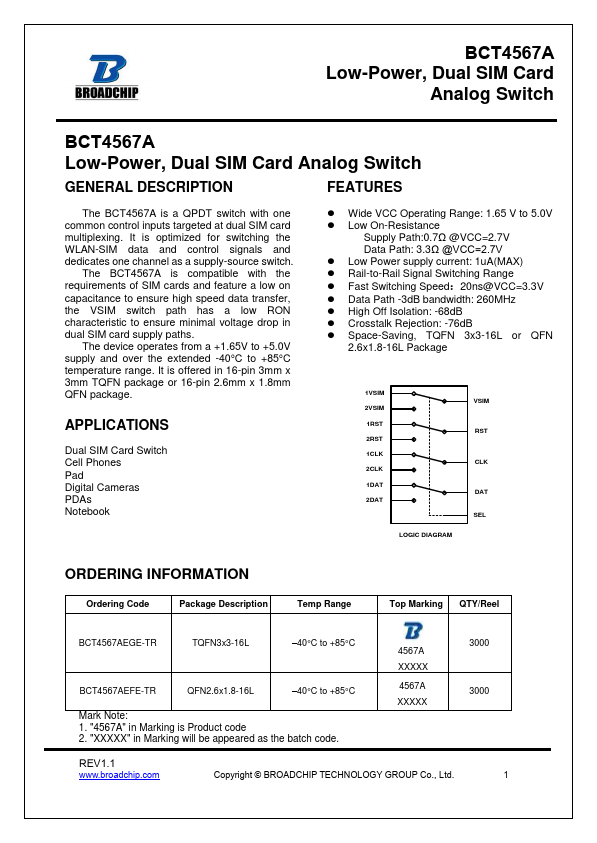

BCT4567A Low-Power, Dual SIM Card Analog Switch BCT4567A Low-Power, Dual SIM Card Analog Switch GENERAL DESCRIPTION FEATURES The BCT4567A is a QPDT switch with one common control inputs targeted at dual SIM card multiplexing. It is optimized for switching the WLAN-SIM data and control signals and dedicates one channel as a supply-source switch. The BCT4567A is compatible with the requirements of SIM cards and feature a low on capacitance to ensure high speed data transfer, the VSIM switch path has a low RON characteristic to ensure minimal voltage drop in dual SIM card supply paths. The device operates from a +1.65V to +5.0V supply and over the extended -40°C to +85°C temperature range. It is offered in 16-pin 3mm x 3mm TQFN package or 16-pin 2.6mm x 1.8mm QFN package.
