BCT5037 - FM Low Noise Amplifier

Description

BCT5037 is a Low-Noise-Amplifier (LNA), without earphone or telescopic antenna, re-using GSM antenna to receive FM-radio signal.

BCT5037 is characterized with low noise, high gain and high linearity.

Typical noise figure is 1.2dB and power gain is 21dB.

Features

  • Without any earphone or telescopic antenna receive FM-radio signal through re-using GSM antenna.
  • Ultra-low noise figure 1.2dB.
  • Standard CMOS process technology.
  • High power gain of 21dB.
  • High linearity.
  • EN supports 1.8V/2.8V GPIO.
  • Supply voltage: 2.6V-3.6V.
  • Shutdown current:.

📥 Download Datasheet

Datasheet Details

Part number BCT5037
Manufacturer BROADCHIP
File Size 0.96 MB
Description FM Low Noise Amplifier
Datasheet download datasheet BCT5037 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UP6X2T-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT72328 LED Driver BlueChips

Other Datasheets by BROADCHIP

Part Number Description
BCT5007 FM Low Noise Amplifier
BCT5300 Ceramic Heat Controller
BCT5301 Ceramic Heat Controller
BCT5302 Ceramic Heat Controller
BCT5303 Ceramic Heat Controller

Full PDF Text Transcription

Click to expand full text

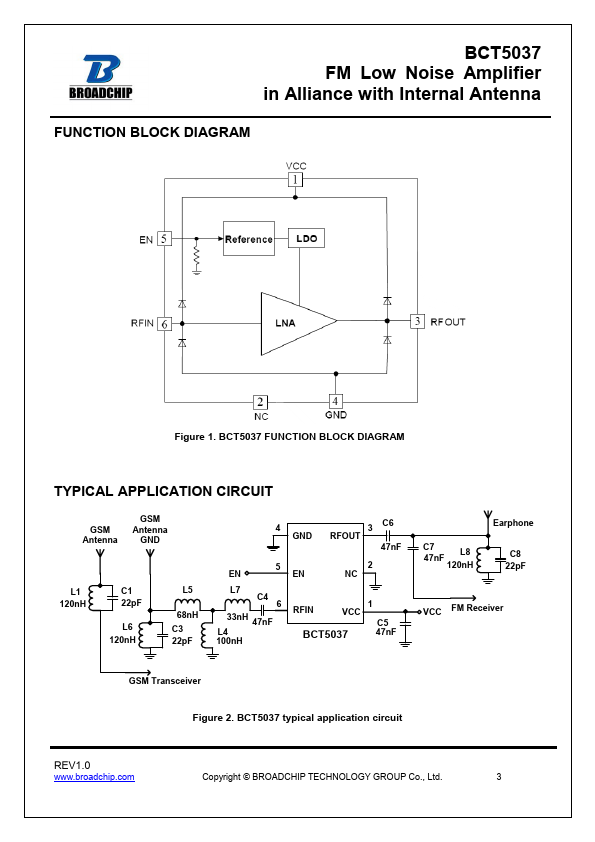

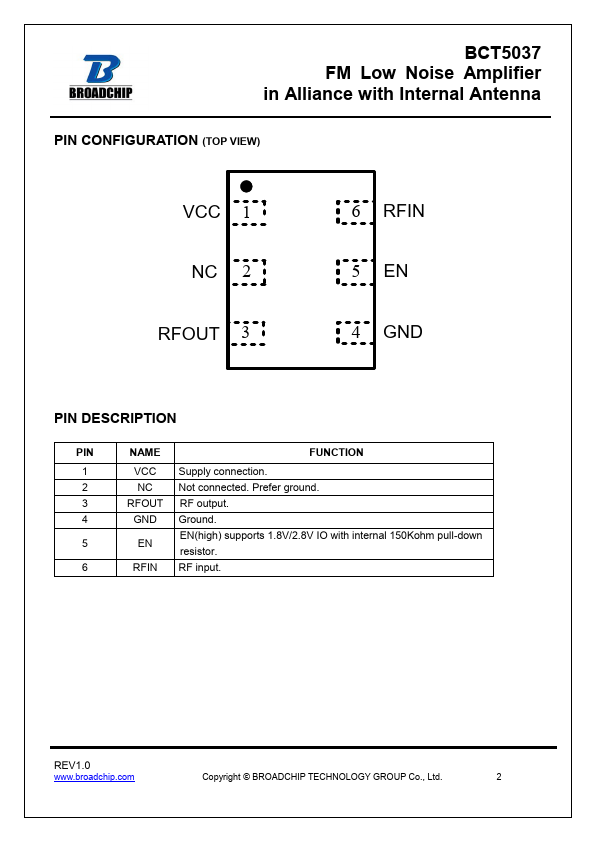

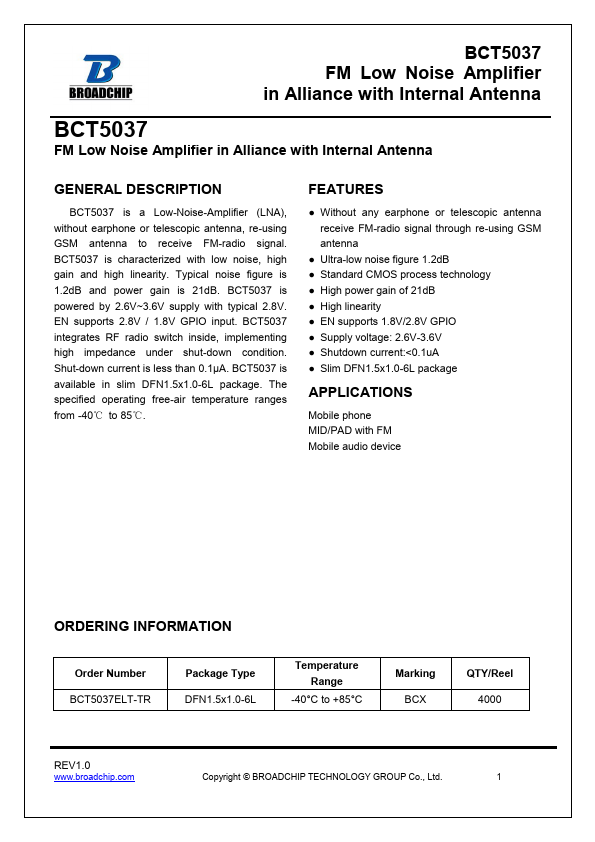

BCT5037 FM Low Noise Amplifier in Alliance with Internal Antenna BCT5037 FM Low Noise Amplifier in Alliance with Internal Antenna GENERAL DESCRIPTION BCT5037 is a Low-Noise-Amplifier (LNA), without earphone or telescopic antenna, re-using GSM antenna to receive FM-radio signal. BCT5037 is characterized with low noise, high gain and high linearity. Typical noise figure is 1.2dB and power gain is 21dB. BCT5037 is powered by 2.6V~3.6V supply with typical 2.8V. EN supports 2.8V / 1.8V GPIO input. BCT5037 integrates RF radio switch inside, implementing high impedance under shut-down condition. Shut-down current is less than 0.1μA. BCT5037 is available in slim DFN1.5x1.0-6L package. The specified operating free-air temperature ranges from -40℃ to 85℃.
