BCT7915H - Over-Voltage Protection Load Switch

Description

The BCT7915H OVP load switch

Features

  • surge protection, an internal clamp circuit protects the device from surge voltages up to 100V. The BCT7915H features an ultra-low 30.7m(Typ. ) Rdson nFET load switch. When input voltage exceeds the OVP threshold, the switch is turned off very fast to prevent damage to the protected downstream devices. The IN pin is capable of withstanding fault voltages up to 29VDC. The default OVP threshold is 6.8V, the OVP threshold can be adjusted from 4V to 20V through external OVLO pin. The device features.

📥 Download Datasheet

Datasheet Details

Part number BCT7915H
Manufacturer BROADCHIP
File Size 789.95 KB
Description Over-Voltage Protection Load Switch
Datasheet download datasheet BCT7915H Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BCT72328 LED Driver BlueChips
BCT72328S LED Display Driver and Key Scan BlueChips
BCT10-S30-UP6X2-H1151 Capacitive sensor Turck
BCT10-S30-UP6X2T-H1151 Capacitive sensor Turck
BCT5-S18-UN6X2T-H1151 Capacitive sensor Turck

Other Datasheets by BROADCHIP

Part Number Description
BCT78L10E 150mA High Voltage Regulators
BCT78L12E 150mA High Voltage Regulators
BCT0104 4-Bit Bidirectional Voltage-Level Translator
BCT1117 1A Bipolar Linear Regulator
BCT1117B 0.8A Bipolar Linear Regulator

Full PDF Text Transcription

Click to expand full text

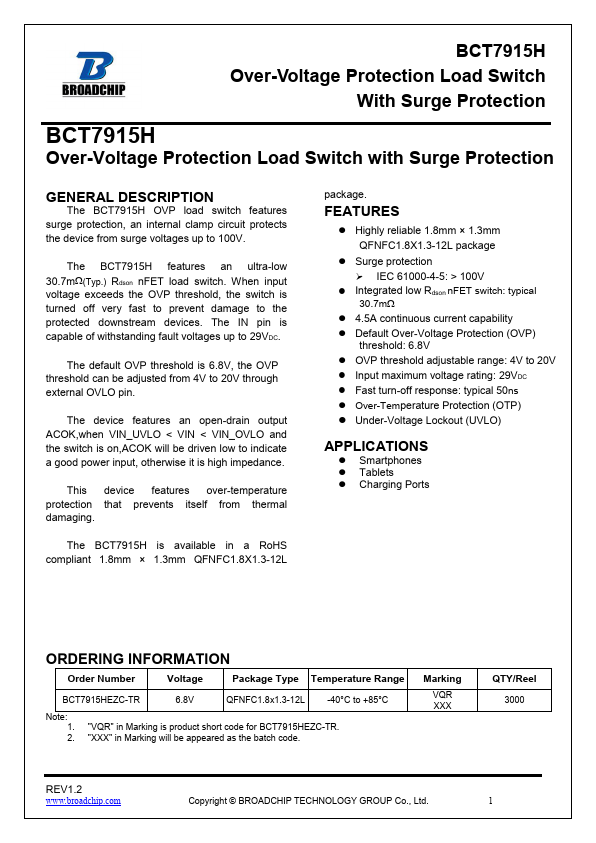

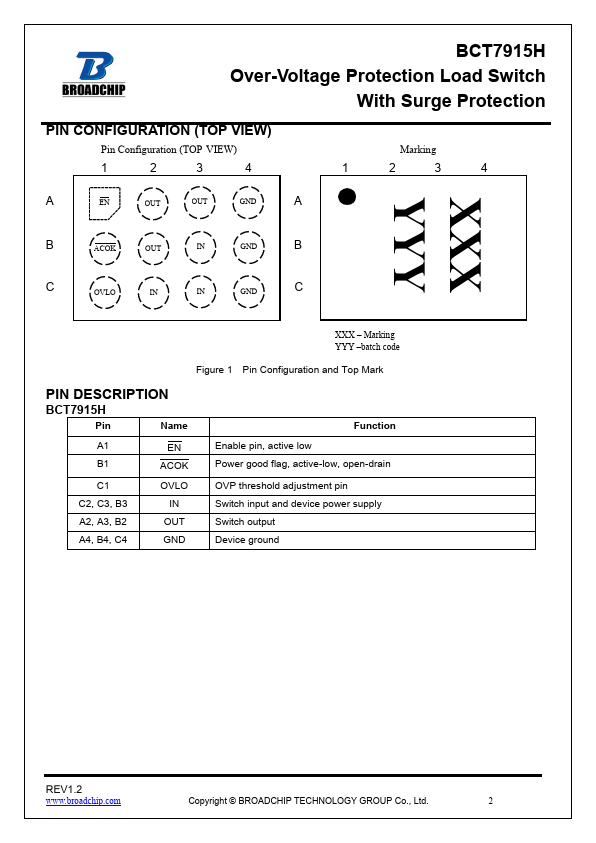

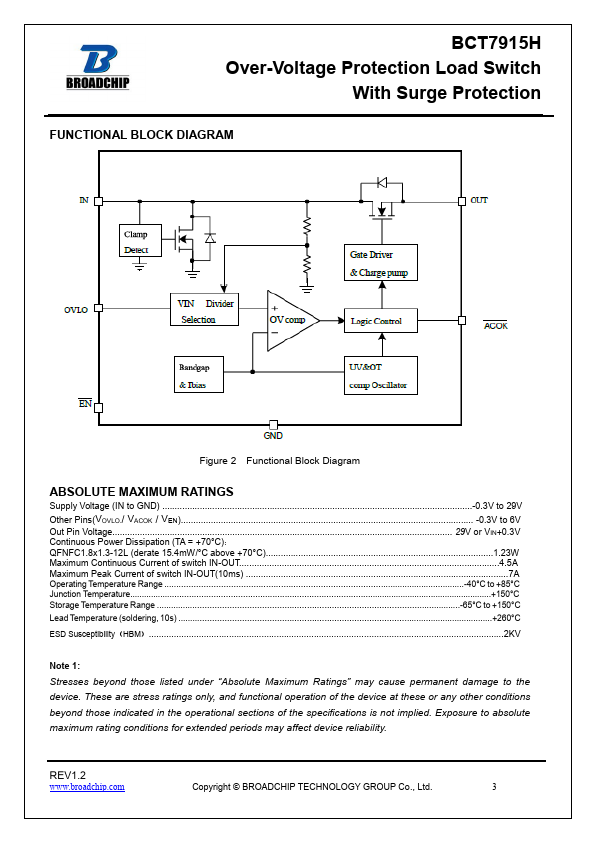

BCT7915H Over-Voltage Protection Load Switch With Surge Protection BCT7915H Over-Voltage Protection Load Switch with Surge Protection GENERAL DESCRIPTION The BCT7915H OVP load switch features surge protection, an internal clamp circuit protects the device from surge voltages up to 100V. The BCT7915H features an ultra-low 30.7m(Typ.) Rdson nFET load switch. When input voltage exceeds the OVP threshold, the switch is turned off very fast to prevent damage to the protected downstream devices. The IN pin is capable of withstanding fault voltages up to 29VDC. The default OVP threshold is 6.8V, the OVP threshold can be adjusted from 4V to 20V through external OVLO pin.
