BCT89318 - High efficiency Class T Audio Amplifier

Product Overview

BROADCHIP

Datasheet Details

Part number	BCT89318
Manufacturer	BROADCHIP
File Size	899.51 KB
Description	High efficiency Class T Audio Amplifier
Datasheet	BCT89318 Datasheet

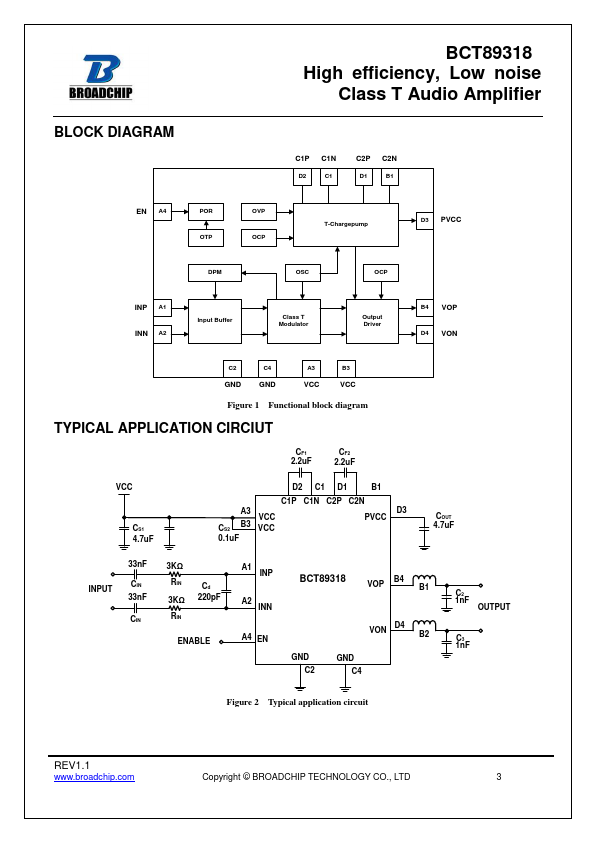

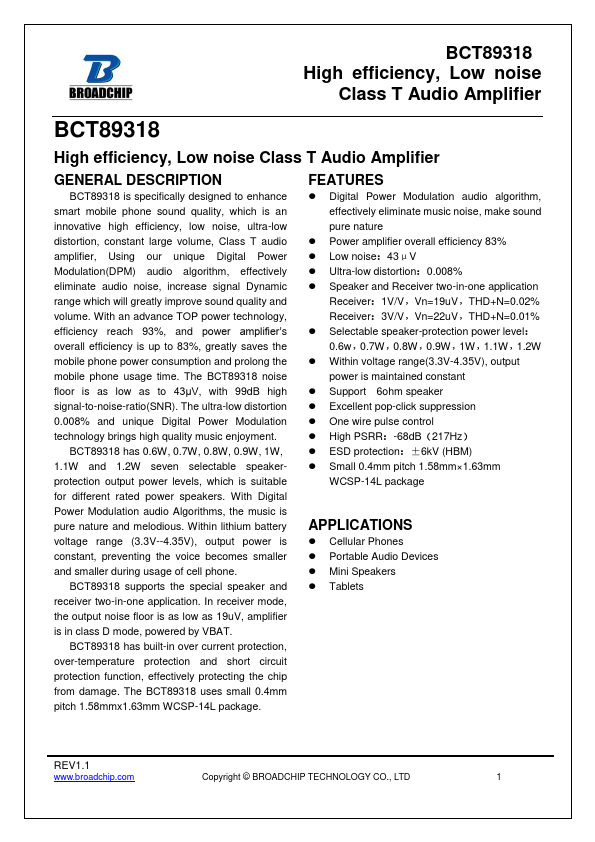

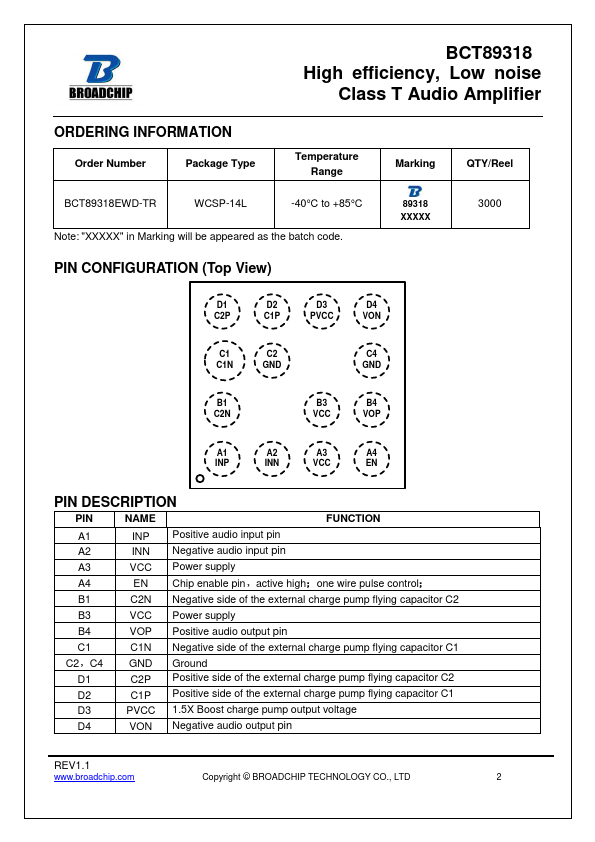

Additional preview pages of the BCT89318 datasheet.

Product details

Description

BCT89318 is specifically designed to enhance smart mobile phone sound quality, which is an innovative high efficiency, low noise, ultra-low distortion, constant large volume, Class T audio amplifier, Using our unique Digital Power Modulation(DPM) audio algorithm, effectively eliminate audio noise, increase signal Dynamic range which will greatly improve sound quality and volume.

Features

Digital Power Modulation audio algorithm, effectively eliminate music noise, make sound pure nature.
Power amplifier overall efficiency 83%.
Low noise：43μV.
Ultra-low distortion：0.008%.
Speaker and Receiver two-in-one.
