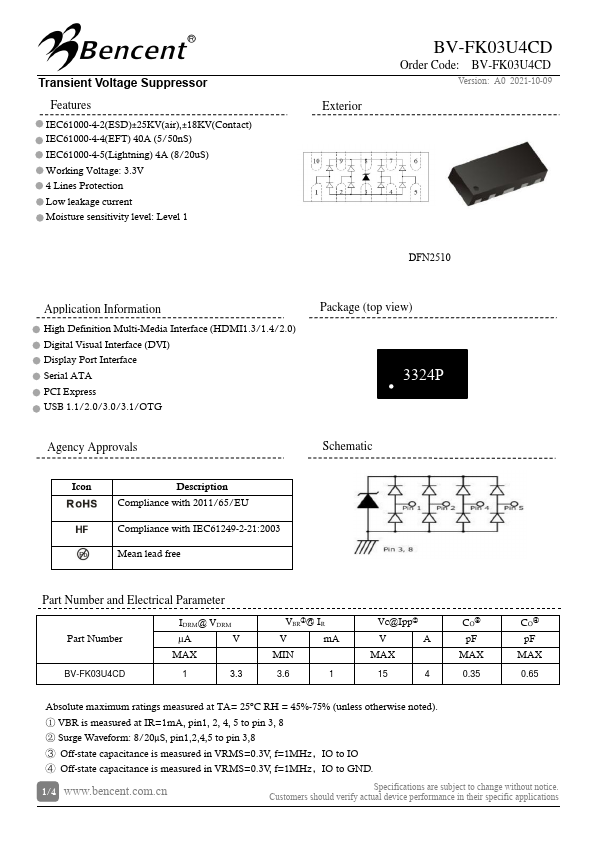

Features IEC61000-4-2(ESD)±25KV(air),±18KV(Contact) IEC61000-4-4(EFT) 40A (5/50n S) IEC61000-4-5(Lightning) 4A (8/20u S) Working Voltage: 3.3V 4 Lines Protection Low leakage current Moisture sensitivity level: Level 1 Exterior Order Code: BV-FK03U4CD Version: A0 2021-10-09 DFN2510 Application Information Hrmigahti Donefinition Multi-Media Interface (HDMI1.3/1.4/2.0) Digital Visual Interface (DVI) Display Port Interface Serial ATA PCI Express USB 1.1/2.0/3.0/3.1/OTG Package (top view) rmation 3324P Agency Approvals Schematic Icon Description pliance with 2011/65/EU pliance with IEC61249-2-21:2003 Mean lead free Part Number and Electrical Parameter Part Number BV-FK03U4CD IDRM@ VDRM μA VBR①@ IR V m A Vc@Ipp② CO③ p F MAX CO④ p F MAX Absolute maximum ratings measured at TA= 25ºC RH = 45%-75% (unless otherwise noted). ① VBR is measured at IR=1m A, pin1, 2, 4, 5 to pin 3, 8 ② Surge Waveform: 8/20μS, pin1,2,4,5 to pin 3,8 ③ Off-state capacitance is measured in VRMS=0.3V, f=1MHz，IO to IO ④ Off-state capacitance is measured in VRMS=0.3V, f=1MHz，IO to GND. 1/4 .bencent..cn Specifications are subject to change without notice. Customers should verify actual device performance in their specific applications Transient Voltage Suppressor Part Numbering System BV FK 03 U 4 C D (1) (2) (3) (4) (5) (6) (7) (1) Bencent Transient Voltage Suppressor (2) (P1a)ckage(:1D) FN(215)10 (1) (1) (1) (1) (3) Working Voltage:3.3V (4) Low...
